USB Interface for Joystick and Buttons

SKU: CE07542

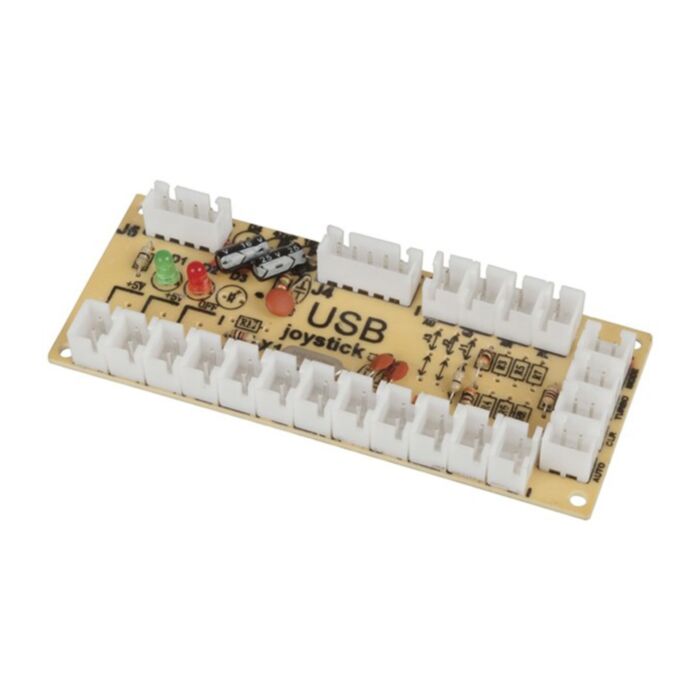

A handy USB interface board for connection to a S 1147 joystick and up to 12 arcade buttons. It connects into any device that supports a USB joystick. Includes pre-terminated interface leads with 6.3mm spade plugs. This board appears as a simple driverless USB interface, recognised by most operating systems as a HID. For full wiring information, there are a number of online guides available depending on the arcade project you are building.

$30.02 AUD, inc GST

$27.29 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10-25 $26.47 (exc GST)
25+ $25.93 (exc GST)

This handy USB interface board allows you to connect to a S 1147 joystick and up to 12 arcade buttons and appears as a simple driverless USB interface, recognised by most operating systems as an HID.

It connects to any device that supports a USB joystick and includes pre-terminated interface leads with 6.3mm spade plugs to connect your arcade buttons.

For full wiring information, there are a number of online guides available depending on the arcade project you are building.

Additionally there are 4 inputs that alter the on-board processor's output including Joystick Mode, Turbo, Auto & Clear

Turbo: continuous resending of 'button is down' info while this extra button is also held

Auto: continuous resending for all buttons pressed

Clear: change back to single button-down sends

Mode: switches between a single (red LED) and dual joysticks (green LED). Either a single 2 axis Digital or a 2 axis Digital plus a 4 axis Analog joystick. However out of the factory the analog inputs are all wired in parallel and held at mid-point with 2 x 10k resistors.

To use analog controls the central joining trace needs to be cut and the 2 x 10k removed, then a 4 pin connector fitted to the input points. Note that this controller in analog mode encodes the analog data as joystick and then the digital data as Point-of-View (HAT) mode. (Analog pots need +5 & Gnd)

J1 sets the startup mode; there is a zero ohm resistor holding J1 low for digital mode, unsolder and move to its upper position to hold J1 high and the board will startup in analog mode.

Features

Up/Down/Left/Right inputs
12 button inputs
Detachable USB lead for fitting through small holes
Includes 10 pluggable leads that connect directly to spade terminals on SM1052, SP0662, SP0664, SP0665, SP0666 and SP0669
Joystick and buttons not included
