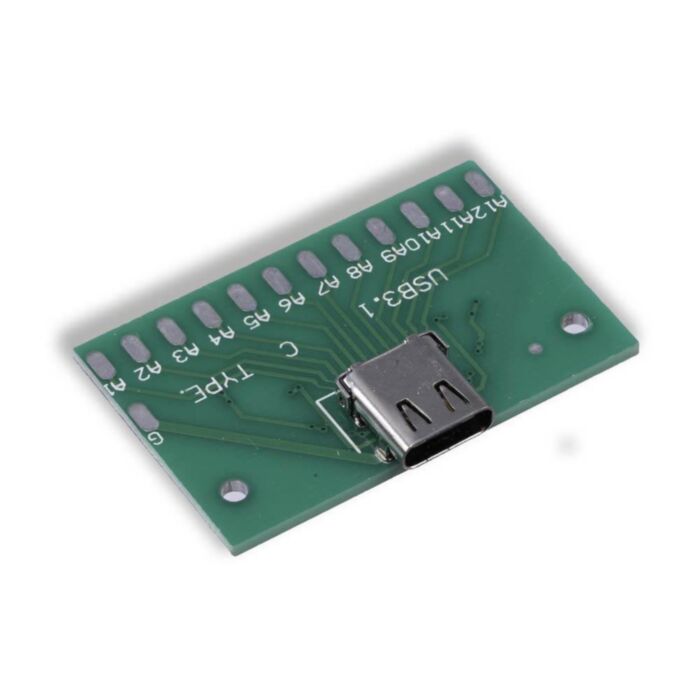

USB-C Breakout Board (SMD)

Experiment and implement USB-PD or high-speed USB with this versatile breakout.

$1.65 AUD, inc GST

$1.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

5-15 $1.47 (exc GST)
15+ $1.43 (exc GST)

Recommended Essentials:

USB C to C Cable - 1 Meter (2.0)

$8.30

Breaking out all A and B connections from the USB-C Socket you can experiment with many protocols, reversible and non-reversible designs.

Specifications

Dimensions: 40 x 27 x 5mm (including connector)

Check out this Introduction to USB-C by Microchip for some pointers!

This product is listed in:

Connectors & Sockets>USB
