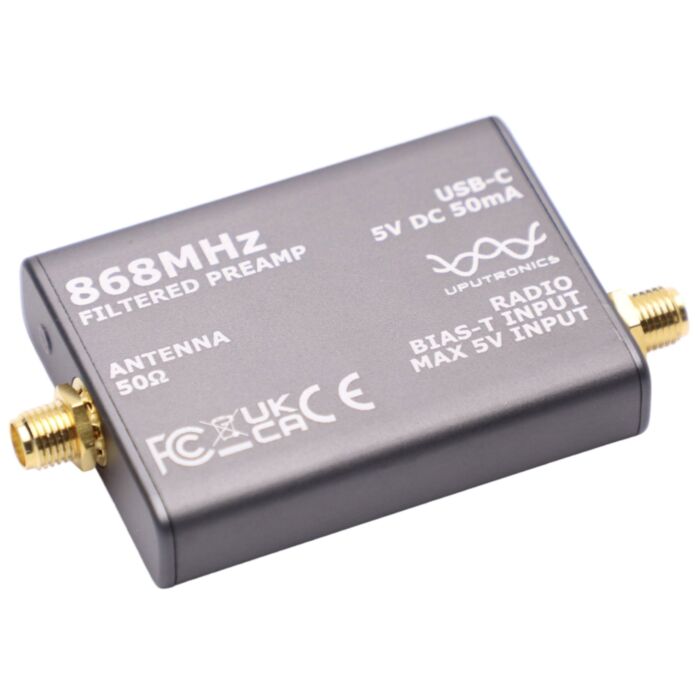

Uputronics 868MHz SDR Filtered Preamp
Available with a lead time
Expect dispatch between Dec 30 and Jan 06
Restrictions apply to this RF Equipment for use in Australia:
- Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
- If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.
For use in other locations around the world:
- Follow region-specific frequency spectrum rules.
A declaration of use will need to be submitted during checkout.
The Uputronics 868MHz SDR Filtered Preamp combines a SAW bandpass filter and low-noise amplifier to dramatically enhance reception quality for software-defined radio applications. This precision-engineered device effectively eliminates out-of-band interference while providing additional gain, making it an invaluable tool for receiving FLARM, LoRa, and ISM band signals with exceptional clarity.
Key Features- MiniCircuits PSA4-5043+ LNA providing 16dB gain at 868MHz
- 868MHz SAW bandpass filter with 15MHz bandwidth
- Ultra-low noise figure of 0.75dB
- Dual power options: USB-C or 5V bias-tee input
- High-quality SMA female connectors for reliable connections
- Visual power indication via RED LED
- Compact and robust design for laboratory or field use
Installation is straightforward - simply connect the preamp between your antenna and SDR receiver using the SMA connectors. Power can be supplied either through the USB-C port or via bias-tee from compatible devices like the Airspy HackRF One. For optimal performance, pair with an appropriate 868MHz antenna such as the SparkFun DiPole Antenna - SMA, 2dBi (868MHz).
Important Usage Notes
- This unit is designed for reception only - do not transmit through it
- Maximum bias-tee input voltage is 5V
- Not suitable for Helium cryptomining applications due to no TX bypass
- 1x Uputronics 868MHz SDR Filtered Preamp
- Mounting hardware
The preamp is compatible with most USB SDR dongles and professional receivers including:
- RTL-SDR USB dongles
- Airspy devices
- FunCube dongles
- HackRF One
- Uputronics FPA Series Preamplifiers Datasheet
- CE Certificate of Conformity
- UKCA Certificate of Conformity
Uputronics specialises in designing and manufacturing high-quality RF and microwave equipment for software-defined radio applications. Their products are renowned for exceptional performance and reliability, serving educational institutions, research facilities, and radio enthusiasts worldwide.
