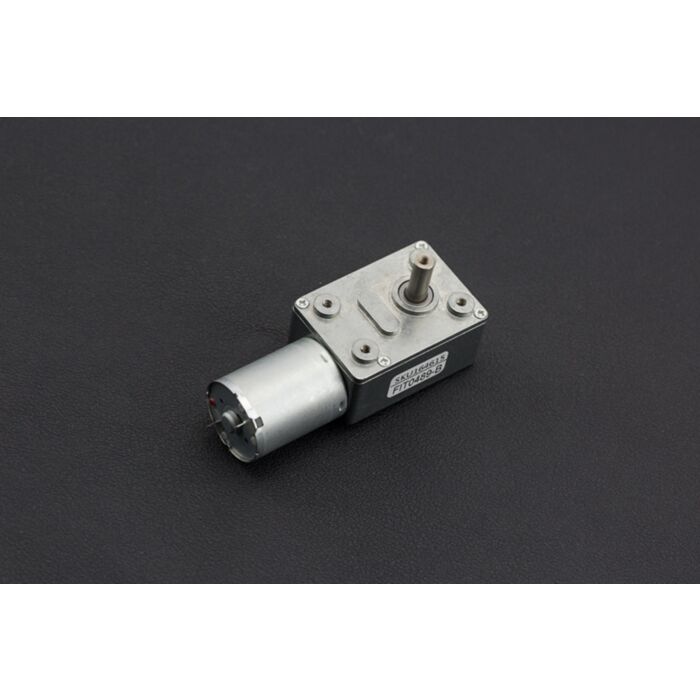

Turbo Metal Gear Worm Motor (6V 40RPM 10kg/cm)

SKU: FIT0489-B Brand: DFRobot

$32.95 AUD, inc GST

$29.95 AUD, exc GST

Available with a lead time
Expect dispatch between May 19 and May 22

Quantity Discounts:

10+ $28.75 (exc GST)
25+ $27.85 (exc GST)

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated. (From wikipedia) This part uses a two wire connection and supports direction control as well as PWM speed control. Rated voltage is 6v and will achieve 40RPM, with a torque of 10kg/cm.

Specification

Operating Voltage: 3 - 9 V
Rated Voltage: 6V
No-load Speed: 40 RPM
No-load Current: 40 mA
Rated Torque: 32 RPM
Rated Current: 250 mA
Rated Torque: 2.5 kg.cm
Rated Power: 1.3 W
Stall Torque: 10 kg/cm
Stall Current: 1.7 A
Reduction Ratio: 1:150
Weight: 160 g

Parts List

Metal Turbo Worm Gear Motor (6V 40RPM 10kg.cm) x1

Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.
