Touch screen breakout board (0.5mm FPC)

Rating:

100% of 100

SKU: ADA334 Brand: Adafruit

If you've got a resistive touch screen that you'd like to use, you'll need this breakout! It has a fine pitch (0.5mm) connector soldered onto it and it's broken...

$7.60 AUD, inc GST

$6.91 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 09 and Dec 12

Quantity Discounts:

10-25 $6.64 (exc GST)
25+ $6.43 (exc GST)

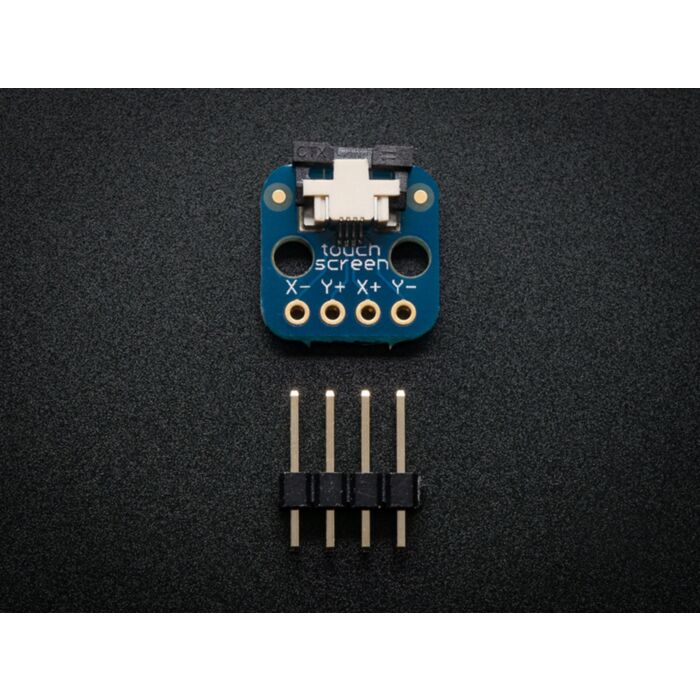

If you've got a resistive touch screen that you'd like to use, you'll need this breakout! It has a fine pitch (0.5mm) connector soldered onto it and it's broken out into the 4 resistive wires of the panel.

A petite 0.5"x0.5" (12.5mm x 12.5mm) with two mounting holes as well, that you can use for strain relief. Works perfectly with Adafruit's 3.2" touch screen

Check out Adafruit's great example Arduino library code that shows how to get readings, debounce, and read the pressure from any touch screen (so you can detect when its being touched and how hard) The code is not complex and is easily ported to other microcontrollers.

Technical Details

Dimensions:

Length: 12.97mm/0.5in
Width: 12.97mm/0.5in
Height: 3.81mm/0.15in
Weight: 0.57g/0.02oz

Fritzing object available in the Adafruit Fritzing Library

EagleCAD PCB files available on GitHub

Connector datasheet
