Power Distribution Bus - 7 x 6mm diameter solid brass

SKU: ADA737 Brand: Adafruit

Imagine terminal blocks that are cut out of one solid piece of brass, designed to distribute power. Well, that's what Adafruit have here! These machined bus bars are for...

$5.05 AUD, inc GST

$4.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $4.45 (exc GST)
25+ $4.36 (exc GST)

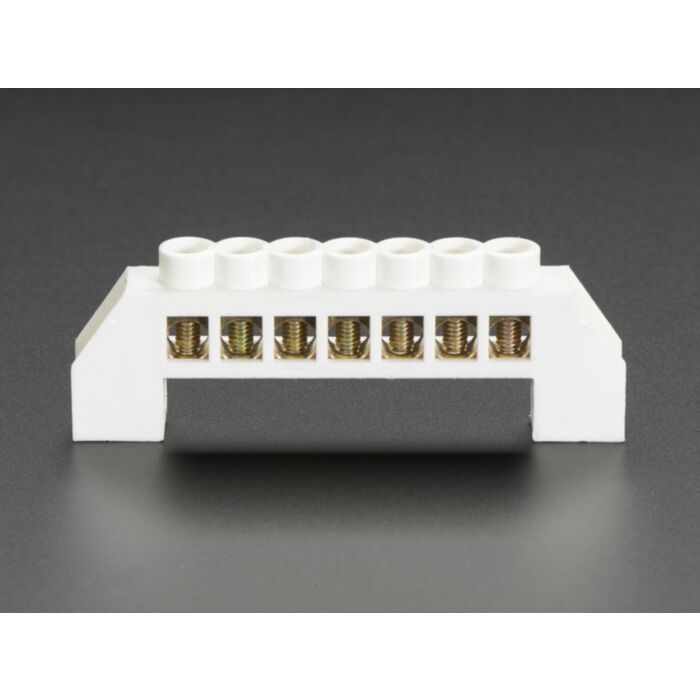

Imagine terminal blocks that are cut out of one solid piece of brass, designed to distribute power. Well, that's what Adafruit have here! These machined bus bars are for when you want to distribute power through a project, we think they are ideal for robots and LED pixel grids where you have tons of current and a lot of loose wiring to control

Each bus has 7 holes bored out of a chunk of brass. There are screws that can cinch down any number of wires. Since its meant for power distribution, the wires should be 20 AWG or larger (thinner wires will slip out). You can use any larger wire, the holes are 6mm diameter! Adafruit don't have exact specifications for current carrying ability but Adafruit imagine they are good for at least 10A as its just a chunk of metal. Adafruit plan to use these for LED pixel matrix power distribution, which is a low voltage and fairly low amperage activity. If you want to use this for higher currents or voltages, please use common sense and plenty of testing until Adafruit can find a spec sheet!

A nice touch on these is the plastic covering which provides a little isolation from the outside world, and mounting flanges.

Technical Details

Dimensions (including plastic flange): 83mm x 30mm x 11mm / 3.25" x 1.15" x 0.42"
Dimensions (without flanges): 55mm x 19mm x 11mm / 2.25" x 0.75" x 0.42"
Mounting hole diameter: 4.5mm
Mounting hole distance: 73mm

This product is listed in:

Connectors & Sockets>Terminal Blocks
