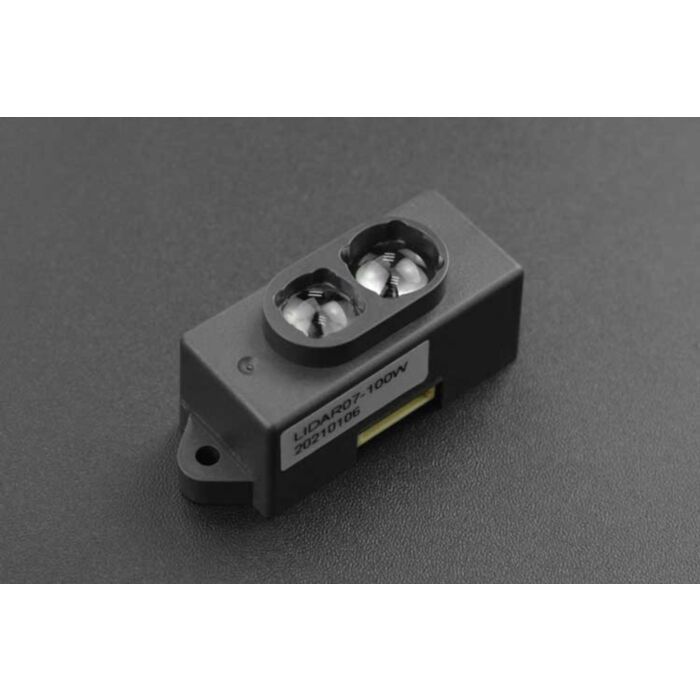

TOF IR Distance Sensor (0.2~12m)

SKU: SEN0413 Brand: DFRobot

This is a low-cost single-point TOF (Time of Flight) IR distance sensor for short-to-medium range distance measurement within 0.2m~12m. It adopts 850nm LED light...

$36.25 AUD, inc GST

$32.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $31.96 (exc GST)
25+ $31.31 (exc GST)

This is a low-cost single-point TOF (Time of Flight) IR distance sensor for short-to-medium range distance measurement within 0.2m~12m. It adopts 850nm LED light source and unique designs of optical system, structure, and circuit. The integrated filtering algorithm could greatly reduce the measurement noise.

The ranging module supports both I2C and UART communication, easy to be integrated into end products. Besides, it offers single passive measurement and continuous active measurement for meeting various requirements in actual use.

Connect Diagram

Dimension

Specification

Measurement Range: 0.2m~12m (Indoor 90% reflectivity)
Power Supply: 4.8-5.2V
Communication: UART, I2C
Measuring Accuracy: 20-350cm(±5cm) 351-1200cm(±1.5%cm)
Receiving View Angle: half-angle 1°
Transmitting View Angle: half-angle 2°
Minimum Resolution: 1mm
Test Frame Rate: Max 500Hz
Ambient Light Immunity: 15KIux
Exposure Time: 5us-5000us
Signal Amplitude: 3400LSB-7000LSB
Operating Temperature: -10°C - 60°C

Documents

Product wiki

Parts List

TOF IR Distance Sensor (0.2~12m) x1
8PIN Sensor Connector x1
