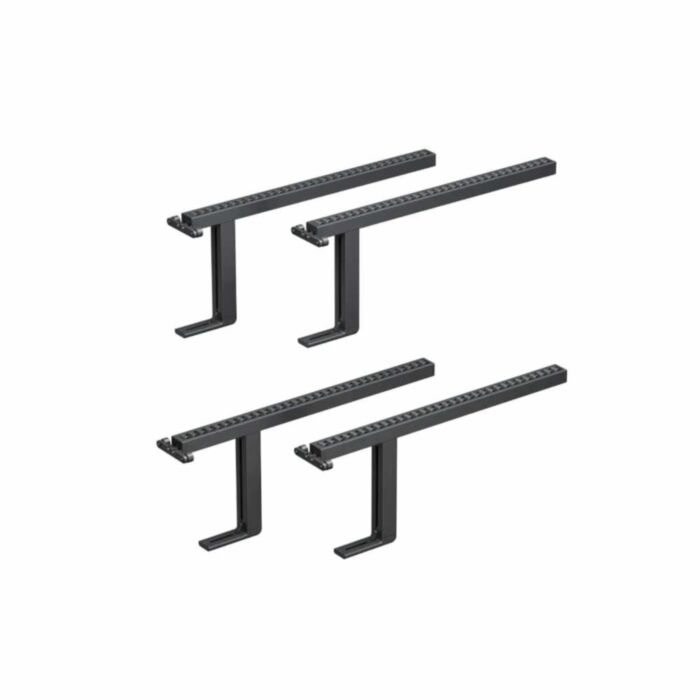

Intelligent Conveyor for P3 - Extension Module
Engrave and cut larger materials with absolute stability - adding to the stock rails, each extension adds 50cm of processing capability.
Available with a lead time
Expect dispatch between Feb 16 and Feb 23
Quantity Discounts:
- 3+ $233.19 (exc GST)
- 5+ $225.91 (exc GST)
Precision-engineered support rails designed to extend the material handling capabilities of your xTool P3 CO2 laser cutter. These extensions integrate seamlessly with the conveyor feeder to provide a stable, level platform for oversized workpieces that exceed the standard machine bed dimensions.
Navigating the "workpiece length limit" is a common frustration for makers moving into professional signage or furniture production. These extensions solve the issue of material sag and misalignment by providing continuous support, ensuring that even a three-metre timber plank remains perfectly level and tracked correctly during high-speed laser processing.
Constructed from high-grade aluminium alloy with low-friction roller bearings, these extensions are built for the hustle of a busy workshop. As an official OEM accessory, they are designed to match the exact height and profile of the P3 chassis, guaranteeing a flush transition that prevents the material from catching or tilting as it feeds through the machine.
Core Features
- Produce "Infinite" Projects: Break free from standard workspace limitations; each additional rail set expands your placeable material length by 700mm, supporting up to 7 sets for a total processing length of 5 metres (over two times common ply sheet lengths).
- Maintain Micron-Level Precision: Minimise pattern length errors to less than 1mm per metre of processing with a rigid support system that ensures material stays parallel to the feed direction.
- Support Heavy-Duty Materials: Confidently process robust materials up to 26mm thick, from solid hardwoods to thick acrylics, without the need for additional support tables, thanks to the suspended rail design.
- Protect Delicate Surfaces: Move materials smoothly and prevent marring or scratching on the underside of your workpieces using the integrated low-friction rollers.
- Consistent Technical Alignment: Ensure your material remains within the 0.5mm auto-measure tolerance by preventing "overhang tilt" which can lead to clamping failures or engraving inaccuracies.
Technical Specifications
| Property | Specification |
|---|---|
| Length Extension | 700mm per set (Placeable length increases by 500mm per set) |
| Maximum Supported Length | Up to 5000mm (with 7 total sets) |
| Maximum Material Width | 610mm |
| Maximum Material Thickness | 26mm (Hardwood/Acrylic); 3mm+ for soft materials (use backing board) |
| Processing Tolerance | <1mm error per 1000mm of travel |
| Material Support | Suspended rail design (No extra table required up to 1500mm) |
Usage Notes
According to the official xTool technical FAQ, when using these extensions for cutting, it is recommended to increase the number of tabs in your software settings to prevent cut-out pieces from falling and obstructing the rollers. Additionally, ensure the part of the material "hanging in the air" at the end of the rails never exceeds 30cm to maintain processing accuracy.
