Servo-Driven Gear Rack Kit (5kg Thrust, 290 mm/sec, Dual Gear Rack)

SKU: GB-3207-0003-0002 Brand: goBilda

This Servo-Driven Gear Rack Kit creates linear motion using a servo. With an impressive thrust spec that’s almost unbelievable compared to.....

$184.95 AUD, inc GST

$168.14 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 03

Quantity Discounts:

10-25 $159.73 (exc GST)
25+ $151.33 (exc GST)

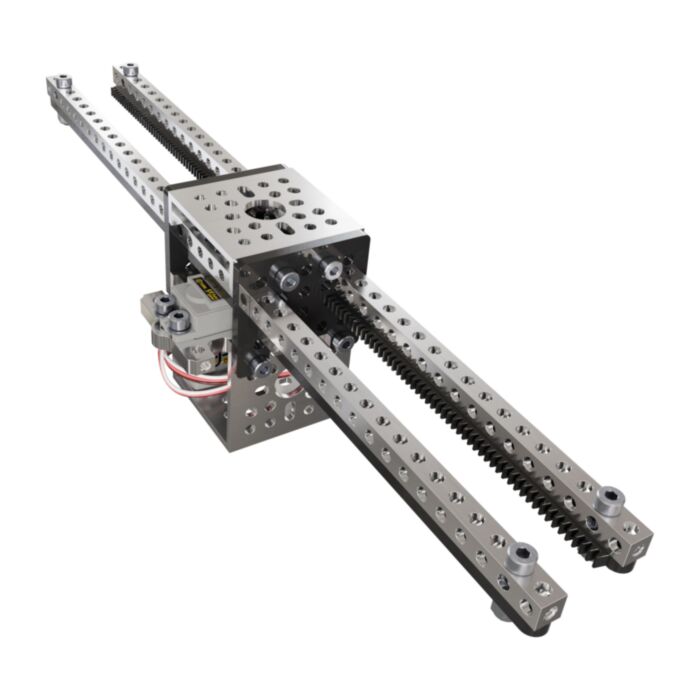

This Servo-Driven Gear Rack Kit creates linear motion using a servo. With an impressive thrust spec that’s almost unbelievable compared to its overall compactness, this kit is a fantastic way to implement back-and-forth motion in your project.

This kit is driven by a 5-Turn Dual Mode Super Speed Servo that gives the kit its nominal 5kg thrust, 290mm/sec specs. Five other options are available across the Single and Dual Gear Rack families. Both families offer three choices of servos that each provide different thrust and speed specs.

The two gear racks are fastened to Square Beams that provide for a huge variety of attachment options via threaded holes on the goBILDA® 16mm linear pattern. The included U-Channel structure, meanwhile, provides a multitude of mounting possibilities. Aside from utilizing the build-system-wide attachment possibilities of the goBILDA® 16mm square pattern thru holes and 14mm center holes in the kit’s included U-Channel, you can also swap out either or both of the included channel with a same-Series channel length of your choice.

Tools Required:

2.5mm Hex Key (L-Key or T-Handle)
3mm Hex Key (L-Key or T-Handle)
7mm Nut Driver

Kit Contents:

QTY	SKU	Name
2	1106-0041-0328	1106 Series Square Beam (41 Hole, 328mm Length)
1	1120-0001-0048	1120 Series U-Channel (1 Hole, 48mm Length)
1	1121-0001-0048	1121 Series Low-Side U-Channel (1 Hole, 48mm Length)
1	1133-0001-0001	1133 Series Plastic Flat Grid Bracket (1-1) - 2 Pack
1	1802-0043-0001	1802 Series Servo Frame (43mm Width, for Standard Size Servos)
1	2000-0025-0504	2000 Series 5-Turn, Dual Mode Servo (25-4, Super Speed)
1	2305-0025-0024	2305 Series Brass, MOD 0.8, Servo Gear (25 Tooth Spline, 24 Tooth)
2	2311-0001-0118	Acetal MOD 0.8 Gear Rack (118 Tooth, 41 Hole)
1	2800-0004-0012	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length) - 25 Pack
1	2800-0004-0018	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length) - 25 Pack
1	2812-0004-0007	M4 x 0.7mm Nylock Nut (25 Pack)

Downloads

Specs

Weight	303g (10.7oz)
Servo Included	2000-0025-0504
PWM Range to Achieve Full Travel	700 - 2300µsec
Travel per µsec	0.15 mm/µsec
Pulse Amplitude	3-5V
Deadband Width	4µsec
Motor Type	Brushed DC
Voltage Range	4.8V~7.4V
No-Load Speed (4.8V)	180 mm/sec (7.09 in/sec)
No-Load Speed (6V)	230 mm/sec (9.06 in/sec)
No-Load Speed (7.4V)	290 mm/sec (11.42 in/sec)
Speed at Peak Output Power (4.8V)	90 mm/sec (3.54 in/sec)
Speed at Peak Output Power (6V)	115 mm/sec (4.53 in/sec)
Speed at Peak Output Power (7.4V)	145 mm/sec (5.71 in/sec)
Stall Thrust (4.8V)	4.1kg (9.0lb)
Stall Thrust (6V)	4.9kg (10.8lb)
Stall Thrust (7.4V)	5.6kg (12.3lb)
Thrust at Peak Output Power(4.8V)	2.1kg (4.6lb)
Thrust at Peak Output Power(6V)	2.4kg (5.3lb)
Thrust at Peak Output Power(7.4V)	2.8kg (6.2lb)
No-Load Current (4.8V)	190mA
No-Load Current (6V)	200mA
No-Load Current (7.4V)	230mA
Stall Current (4.8V)	2000mA
Stall Current (6V)	2500mA
Stall Current (7.4V)	3000mA
Current at Peak Output Power (4.8V)	1000mA
Current at Peak Output Power (6V)	1250 mA
Current at Peak Output Power (7.4V)	1500mA

This product is listed in:

goBILDA>KITS>Linear Motion Kits>Servo-Driven Gear Rack Kits
