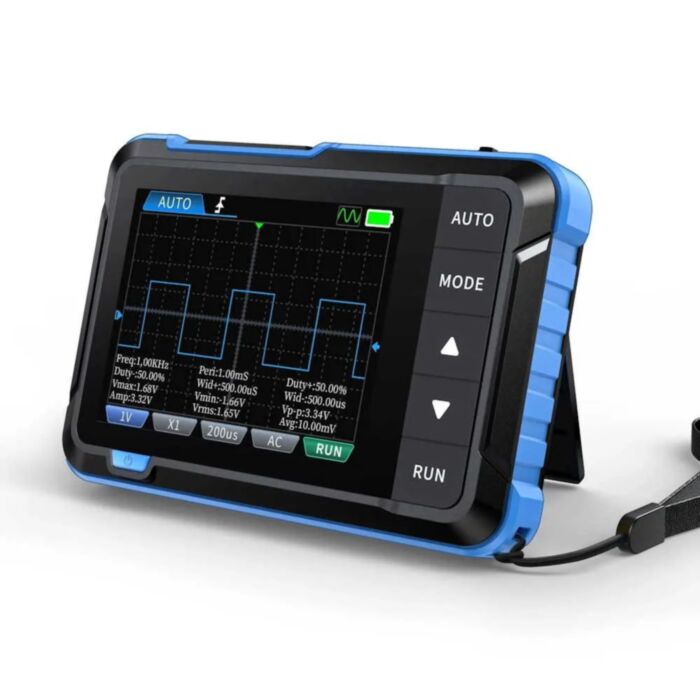

FNIRSI DSO-153 Mini Digital Oscilloscope (1MHz, 5MS/s)
Pocket-sized waveform viewing and test-signal output for repairs and quick checks on low-voltage circuits.
Available with a lead time
Expect dispatch between Oct 09 and Oct 26
For extra-low-voltage circuits only (under 50 V AC or 120 V DC). Not for mains-voltage measurements.
See signals up to 1 MHz on a palm-sized, battery-powered scope that also works as a 10 kHz function generator. It captures at 5 MS/s with Auto, Normal and Single triggering, so it handles repeating analogue waveforms and one-off digital events.
You don't need a bench scope to check a PWM output, watch a sensor respond or show what a square wave really looks like. Long-press AUTO and the scope sets the scale and timebase for you and puts the waveform on screen. That makes it a friendly first oscilloscope for students and hobbyists, and a handy spot-checker for low-frequency work.
The built-in DDS generator outputs 14 waveforms from 0.1 to 3.3 V, so you can drive a filter, amplifier or input stage and look at the result on the same device. Everything runs from a 1000 mAh rechargeable battery (about 4 hours per charge) with USB-C charging, in a 99 x 68.3 x 19.5 mm body that fits in a toolbox or pocket.
Need more bandwidth? The DSO-510 uses the same compact form factor with a 10 MHz / 48 MS/s front end and a 50 kHz generator.
Features
-
Get a readable waveform in seconds with one-press AUTO, which configures the scale and timebase without manual tuning
-
Catch one-off events as well as repeating signals with Auto, Normal and Single trigger modes on rising or falling edges
-
Stimulate and measure with one tool via the built-in 10 kHz DDS generator, which offers 14 waveforms including sine, square, sawtooth, step and noise
-
Measure higher signal amplitudes using an X10 probe (sold separately), which extends the input range from ±40 V to ±400 V within extra-low-voltage limits
-
Work anywhere, no power point needed, thanks to a 1000 mAh lithium battery with about 4 hours of runtime and USB-C charging
-
Read traces clearly on a 2.8-inch 320 x 240 colour display, with AC/DC coupling
Specifications
|
Property |
Specification |
|
Channels |
1 |
|
Bandwidth |
1 MHz |
|
Sampling Rate |
5 MS/s (real-time) |
|
Vertical Sensitivity |
10 mV/Div – 10 V/Div (1-2-5 steps) |
|
Time Base Range |
500 ns/Div – 20 s/Div (1-2-5 steps) |
|
Input Voltage Range |
±40 V (80 Vpp) with X1 probe | ±400 V (800 Vpp) with X10 probe |
|
Trigger Modes |
Auto / Normal / Single |
|
Trigger Edge |
Rising / Falling |
|
Coupling |
AC / DC |
|
Signal Generator Frequency |
0 – 10 kHz |
|
Signal Generator Amplitude |
0.1 – 3.3 V |
|
Duty Cycle |
0 – 100% (rectangular and sawtooth waves) |
|
Waveforms |
14: sine, rectangular, sawtooth, half-wave, full wave, step, anti-step, noise, exponential rise, exponential fall, DC, multi-tone, sinc pulse, Lorentz |
|
Display |
2.8-inch TFT LCD, 320 x 240 |
|
Battery |
Built-in 1000 mAh lithium (approx. 4 hours runtime) |
|
Charging |
USB Type-C, 5 V / 1 A |
|
Languages |
English, Chinese, Russian, Japanese, Spanish, Portuguese, German, Korean |
|
Operating Environment |
-5 to 40 °C, ≤80% RH |
|
Dimensions |
99 x 68.3 x 19.5 mm |
|
Weight |
100 g |
What's Included
-
1x DSO-153 oscilloscope
-
1x alligator clip probe
-
1x charging cable
-
1x lanyard
-
1x user manual
