Time of Flight Camera for Raspberry Pi

SKU: AC-B0410 Brand: Arducam

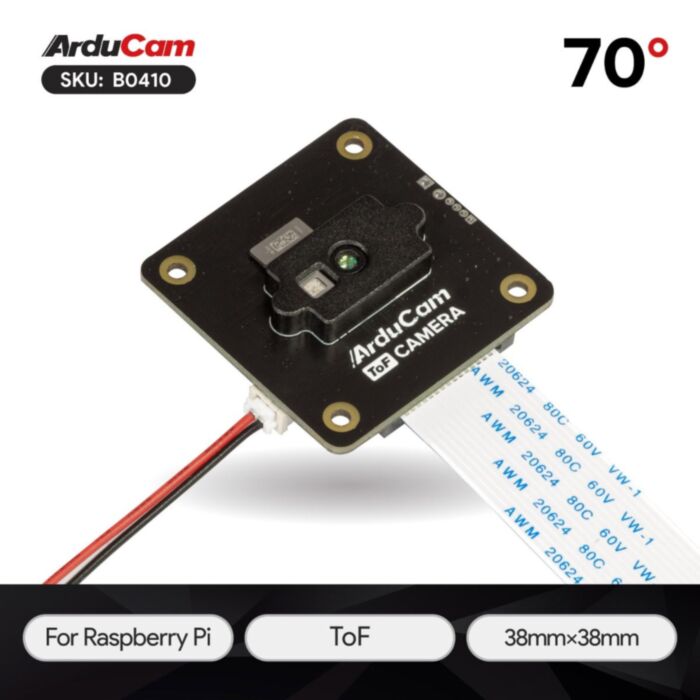

A Time of Flight camera module featuring a MIPI-CSI 2 connection and offering up to 4-meter measuring range with sub-2cm precision, designed and optimized exclusively for Raspberry Pi & Nvidia Jetson boards.

$81.20 AUD, inc GST

$73.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

6-12 $70.86 (exc GST)
12+ $68.65 (exc GST)

Note: Raspberry Pi OS Bullseye is required for this camera (04/04/2022 or later releases), a fresh install is highly recommended.

Features

Real-time point cloud and depth map.
Resolution: 240x180@30fps on RPI4/CM4
Up to 4M measuring distance
Onboard 940nm laser for both indoor & outdoor uses, no external light source needed.
V4L2-based video kernel device
C/C++/Python SDK for userland depth map output and example source code
ROS ready.
38 x 38mm board size

Demonstration

Specifications

Documents

Packing List

1 x Arducam ToF Camera Module
1 x FPC Cable (15cm)
1 x 2-pin Dupunt Cable

Note:

*To use the camera on Pi Zero and 2 W, you need this.

FAQ

Is it compatible with all Raspberry Pi models?
Yes, it can work with most Pis. However, with early models, there may be performance drops.

Do I need external light sources?
No, the camera has an onboard laser. (Non-intrusive, safe for the human eye.)

What’s the maximum operating range?
Far Mode: 4m Near Mode: 2m
