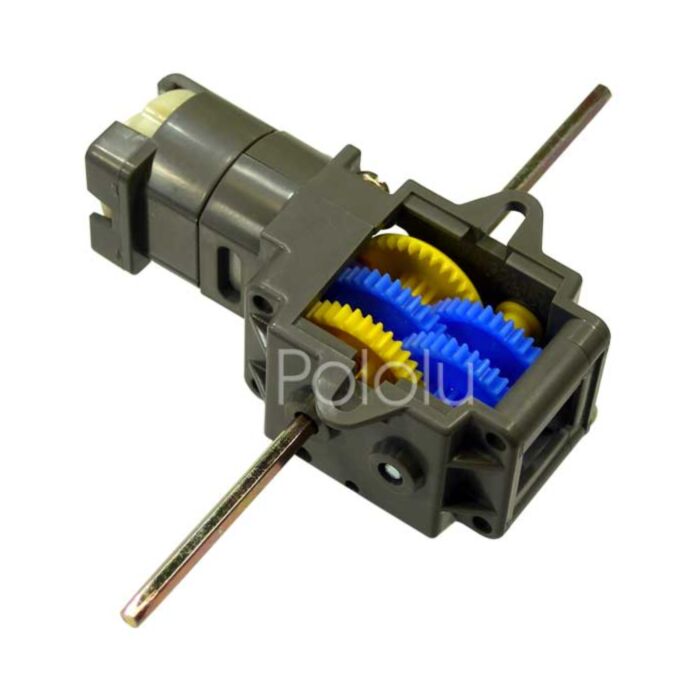

Tamiya 70167 Single Gearbox (4-Speed) Kit

SKU: POLOLU-118

$13.82 AUD, inc GST
$12.56 AUD, exc GST
Tamiya 70167 Single Gearbox (4-Speed) Kit
13.82 AUD

SKU: POLOLU-118

$13.82 AUD, inc GST
$12.56 AUD, exc GST
In stock, ships today if ordered before 2PM
Delivered by Mon, 28th of Aug
Shipping Offer

Overview

The Tamiya single gearbox is essentially half of the Tamiya 70168 double gearbox. The kit can be built with gear ratios of 12.7:1, 38:1, 115:1, and 344:1. There are two possible output axle locations (for any given gear ratio, only one output location is possible).

Complementary products

The output shafts included in this kit are 3 mm hexagonal axles that are 10 cm (about four inches) from tip to tip. The axles work with any of the Tamiya wheels Pololu carry, giving you many options for your robot speed. The low-voltage motors run on 3-6 volts and draw up to a few amps, making them perfect candidates for the Pololu low-voltage dual serial motor controller and the DRV8833 motor driver carrier. Motor overheating can be caused by excessive stalling, even at very low voltages. Pololu recommend that you use stall-detection sensors, or just watch your robot, to make sure that it doesn’t stall for more than a few seconds at a time. For motor specs, see the Mabuchi motor FA-130 (#18100) data sheet (58k pdf).

Note that you can replace the motor in this kit with a lower-current, higher-voltage motor if you want to use this gearbox with controllers such as the qik 2s9v1 dual serial motor controller, TB6612FNG dual motor driver carrier, or Baby Orangutan B-328 robot controller.

To compare all Tamiya gear box kits, see the Tamiya Gearbox Gear Ratio Comparison.

Note: The single gearbox (4-speed) is a kit; assembly is required. To use the kit in robotics projects, you need to connect the motors to your own robot controller.
