Tactile Switch Buttons (6mm tall) x 10 pack

SKU: ADA1490

$4.50 AUD, inc GST
$4.09 AUD, exc GST

More Views

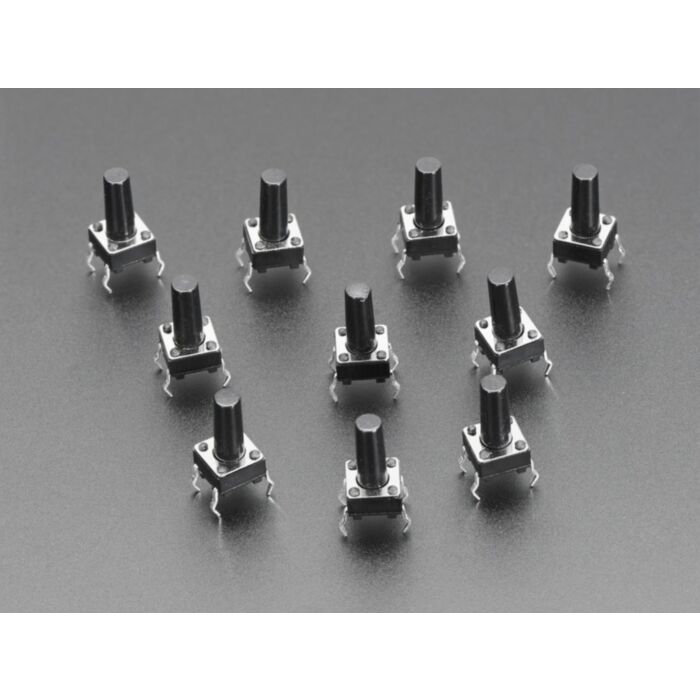

Tactile Switch Buttons (6mm tall) x 10 pack
4.5 AUD

SKU: ADA1490

$4.50 AUD, inc GST
$4.09 AUD, exc GST
In stock, with a short lead time. 126 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Fri, 27th of Oct with Express Post within Australia.

Super-tall clicky momentary switches are standard input "buttons" on electronic projects. These work best in a PCB but can be used on a solderless breadboard as shown in this tutorial. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed. These are extra tall which are useful when putting your project in an enclosure and you want the buttons to stick out.

They come in a pack of 10, they're pretty handy so you'll want to keep them around.

You can find an EAGLE cad package for these in switch-omron:B3F-40XX

Technical Details

  • Base Dimensions: 6.08 mm / 0.23" x 6.08mm / 0.23" x 3.98mm / 0.15"
  • Button Height: 8.25mm / 0.32" from body, 12mm above the PCB

Example 12mm x 12mm x 6mm tall tactile switch datasheet

Tactile button tutorial

Documentation and Resources:
