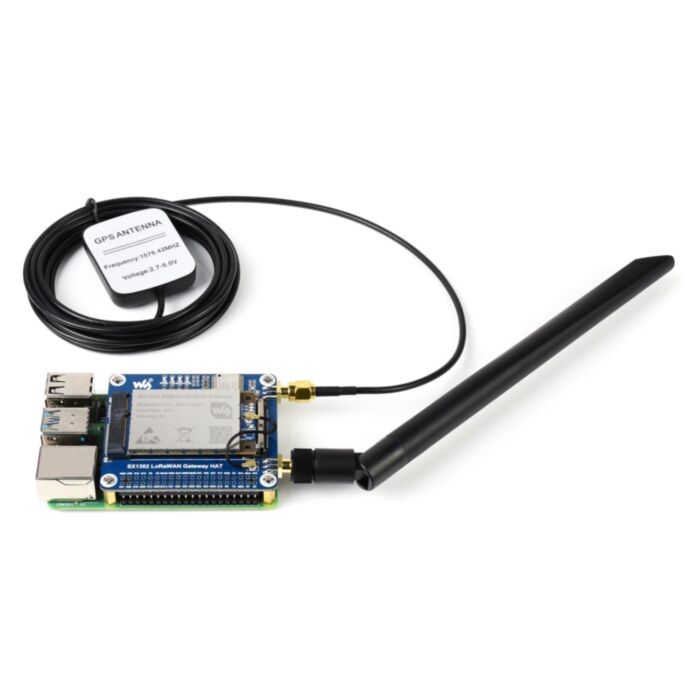

SX1303 915M LoRaWAN Gateway Module+HAT for Raspberry Pi

SKU: WS-22613 Brand: Waveshare
SX130x 868M/915M LoRaWAN Gateway Module/HAT for Raspberry Pi, L76K Module(HAT only), Standard Mini-PCIe Socket, Long range Transmission, Large Capacity,...
$174.95 AUD, inc GST
$159.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 5-10 $152.68 (exc GST)
  • 10+ $147.91 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product is a LoRa Gateway module that incorporates a new-generation SX1303. It has lots of advantages including long-range transmission, large capacity node, and high receiving sensitivity. In addition, SX1303 supports concurrent communication. Due to the outstanding performance of SX1303 on low power consumption, the heat dissipation design of the Gateway can be simplified, thus reducing material cost, also achieving a smaller size.

LoRaWAN Gateway Module features:

  • Integrates Semtech SX1303 normal band and SX1250 radio RF front-end chip
  • Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain
  • The SX1303 supports Fine Timestamp and network positioning based on the time difference of arrival (TDOA)
  • 52-pin Mini-PCIe socket for easy integration into various embedded systems
  • Onboard 4 LED indicators for module operating status
  • Comes with development resources and manual (example in C)

HAT features:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Incorporate L76K module with GPS/BD support, provide accurate clock and location info for gateway module
  • Comes with development resources and manual (examples in C)

Specifications

Chip

Band

SX1303
915M
Frequency range 915M: US915, AU915, KR920
Power supply 5V
Modulation LoRa/(G)FSK
Emit power +26dBm@5V
Receiving sensitivity -141dBm@125KHz/SF12 -121dBm@125KHz/SF5
Overall power consumption emitting: 454mA@5V receiving: 42mA@5V sleep: 11mA@5V emitting: 427mA@5V receiving: 40mA@5V sleep: 8mA@5V
Communication bus SPI, I2C
External connector Mini-PCIe
Operating temperature -40°C ~ 85°C
Dimensions 50.95 x 30mm







What's on board



  1. SX1302/3 LoRaWAN Gateway module
  2. Mini-PCIe socket and buckle
  3. L76K module
  4. RT9193-33 power chip
  5. Status indicator PWR: power indicator RXD/TXD: UART RX/TX indicator PPS: GPS status indicator
  6. Raspberry Pi GPIO header for connecting with Raspberry Pi series boards
  7. L76K antenna connector
  8. LoRa Gateway antenna connector
  9. Battery holder supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts



Module Pinout Definition





HAT Pinout definition





Dimensions





Resources

Wiki for SX1303 915M LoRaWAN Gateway Module+HAT for Raspberry Pi

AU915 Config File



Shipping List

  1. SX130x LoRaWAN Gateway HAT x1
  2. SX1303 LoRaWAN Gateway Module (B) x1
  3. Antenna 868M 5dBi x1
  4. GPS antenna x1
  5. 2×20PIN female pinheader x1
  6. Dual IPEX1 wire x1
  7. Screws pack x1
