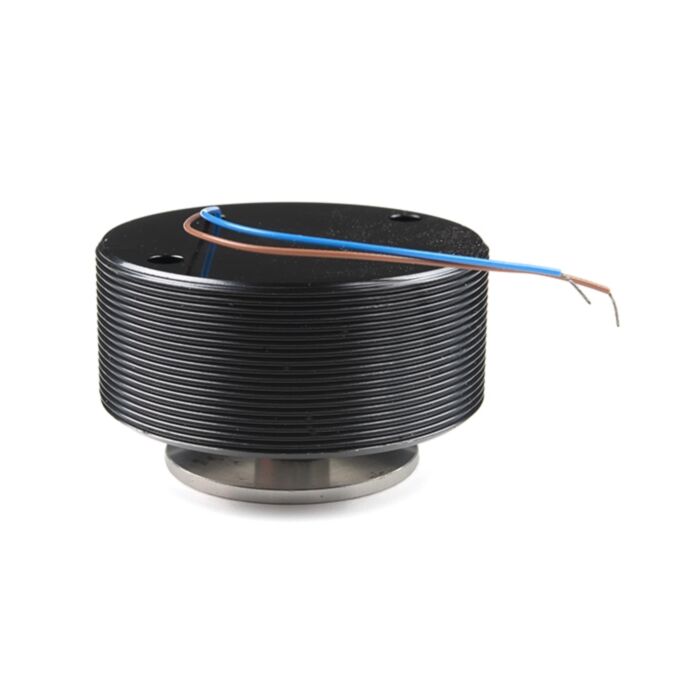

Surface Transducer - Large

Rating:

100% of 100

1 Review

SKU: COM-19102 Brand: Sparkfun

Surface transducers give you the awesome power to turn almost any surface into a speaker...

$43.80 AUD, inc GST

$39.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $38.63 (exc GST)
25+ $37.83 (exc GST)

Surface transducers give you the awesome power to turn almost any surface into a speaker. They're essentially just a speaker except instead of a cone, the coil is attached to a pad that conducts the vibration into whatever you press it against. Hook it up to an audio source and press it against the nearest table, wall or cardboard box. You can even put it against your head and play music directly into your skull (the ultimate surround sound). This transducer comes with an adhesive magnet that can be attached to the base.

50mm Diameter, 31mm Tall
Weight: 0.51526 lbs.
Power: Nominal input 10 W, Maximum input 25W
Nominal Impedance: 4Ω±15% test@200Hz1v
Lowest Resonance Frequency: 58Hz±20% (@ 1.0 V)
Output Sound Pressure Level: 85±3 dB(100、400、800、12000Hz medium value @1m 10w)
Distortion: 5% less @ 5W 1000Hz

Documents

Datasheet
