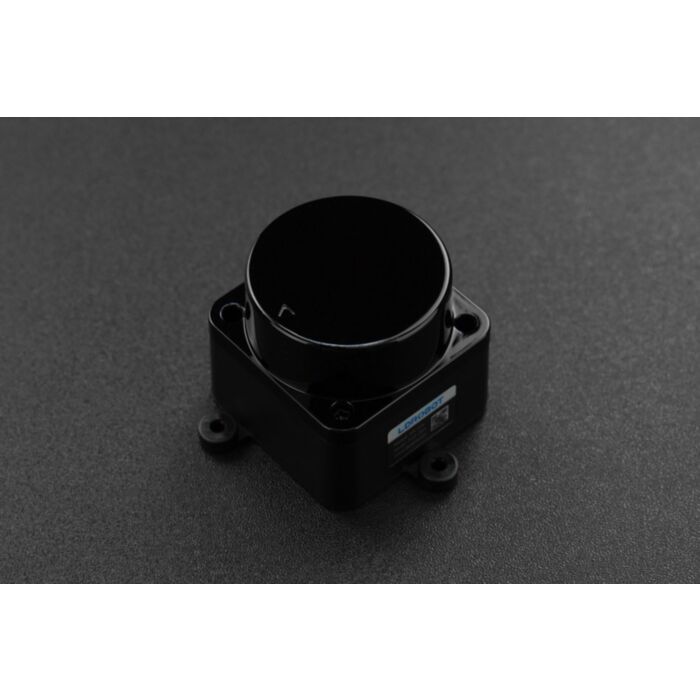

STL-27L 360° DTOF LIDAR Sensor (UART, 25m)

SKU: SEN0589 Brand: DFRobot
With DTOF technology, the 360-degree STL-27L 3D Time of Flight LiDAR is able to perform 21600 measurements per second. Its advanced laser technology and...
Special Price $249.34 AUD, inc GST
Regular Price $299.64 AUD, inc GST
$226.67 AUD, exc GST
Special pricing ends 19 August 2024
* this special may end earlier than shown

Out of Stock

Sign up to get notified when it's available to order.

This equipment uses a laser and has the following restrictions:

  • the equipment is not intended for sale to the general public
  • the equipment is intended to be used in trades, professions or industries
  • the domestic or international prototype/product this equipment is to be used in will comply with relevant laws
  • the end-user of this equipment is licensed and trained to safely work with lasers

A declaration of use will need to be submitted during checkout.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

STL27L 360° DTOF LIDARFeatures of STL27L 360° DTOF LIDAR

Ranging range: 0.03- 25m, can perceive farther environmental information

STL27L 360° DTOF LIDAR Ranging range

Excellent performance and high precision allow it to accurately perceive the contours of the environment

STL27L 360° DTOF LIDAR

Angular resolution: 0.16 7°, Within the effective measurement distance range of 2 meters, the average error is within 15mm

STL27L 360° DTOF LIDAR

The provided SDK works well with both ROS1 and ROS2 systems.

STL27L 360° DTOF LIDAR SDK works with both ROS1 and ROS2 systems

Anti-glare: effectively resists ambient light interference.

STL27L 360° DTOF LIDAR Anti-glare

Extremely small size Easy to integrate and stylish.

STL27L 360° DTOF LIDAR Extremely small size

Coaxial brushless motor, stable performance,lifespan up to 10,000 hours

STL27L 360° DTOF LIDAR Coaxial brushless motor

Laser Conforms to FDA Class 1 human eye safety level

STL27L 360° DTOF LIDAR FDA Classl human eye safety level

Applications

  • Home Service Robot
  • Commercial Service Robot
  • Special Robot
  • Drone
  • Industrial Robot
  • STL27L 360° DTOF LIDAR Applications Home Service Robot, Commercial Service Robot, Special robot, Drone and Industrial Robot

    Specification

  • Measuring range: 0.03~25m
  • Measurement accuracy:     ±15mm at 0.03m-2m, standard deviation of 5mm;     ±20mm at 2m-8m, standard deviation of 15mm;     ±30mm at >8m, standard deviation of 25mm
  • Scanning angle: 360°
  • Scanning frequency: 10Hz
  • Measurement frequency: 21600 Hz
  • Angular resolution: 0.167° @10Hz
  • Operating voltage: 4.5~5.5V
  • Power consumption: <300mA @5V
  • Communication method: UART
  • Anti-ambient light: 60klux
  • Operating temperature: -10°C~ 50°C
  • Storage temperature: -30°C~ 70°C
  • Weight: 45g
  • Documents

  • Datasheet
  • Development Manual
  • sdk_ldrobotsensorteam_stl_v3.0.5
  • LdsPointCloudViewer-tool

    Note: Please download all the files listed below and unzip them into the same folder.

          LdsPointCloudViewer tool Part1

          LdsPointCloudViewer tool Part2

          LdsPointCloudViewer tool Part3

          LdsPointCloudViewer tool Part4

          LdsPointCloudViewer tool Part5

  • Parts List

  • STL27L 360° LIDAR (25m) x 1
  • 4-pin DuPont cable x1
  • This product is listed in:

    Sensors>Distance>Infrared
