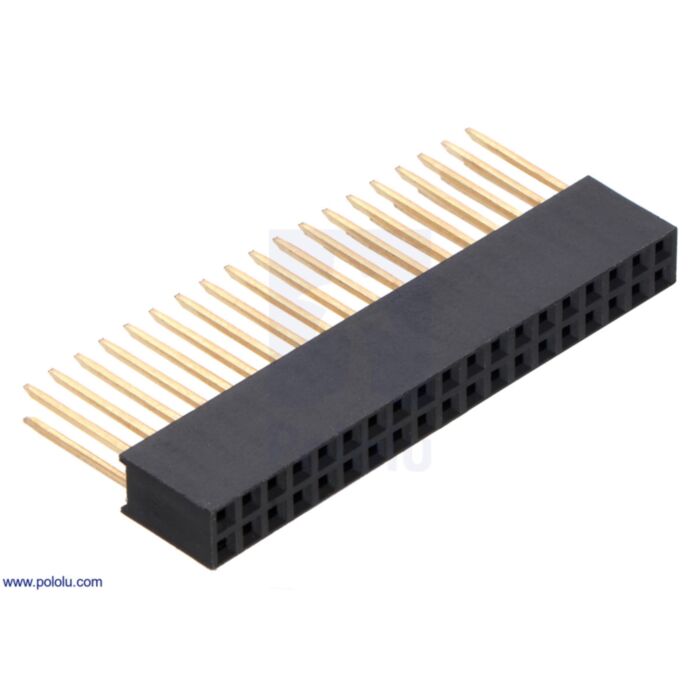

This stackable 38-pin female header features two rows of 19 pins spaced with a standard 0.1" (2.54 mm) pitch; this spacing is the same as on most solderless breadboards and matches 0.1" male header strips. The extended pins allow multiple units to be stacked as popularized on Arduino shields, enabling removable daughter boards that can access pins without blocking them.
This connector is primarily intended for use with the TI-RSLK MAX robot kit. It can be soldered to a TI MSP432 LauchPad to enable plugging into the TI-RSLK Chassis Board v1.0 while still keeping the LaunchPad I/O pins accessible via the extended pins. Pololu also carry a special version of the MSP432 LauchPad already assembled with this header.
Dimensions
Dimensions (in mm) of the Stackable 0.100" Female Header for TI-RSLK MAX: 2×19-Pin, Straight. |
---|
The total width is 48.8 mm.
People often buy this product together with:
0.100" (2.54 mm) Female Header: 1x2-Pin, Straight |
Romi Chassis Ball Caster Kit - Black |
Pololu Chassis Kit for TI-RSLK MAX |
Dimensions
Pins: | 2 x 19 |
---|---|
Spacing: | 0.100 in |
Weight: | 3.8 g |
General specifications
Gender: | male-female |
---|---|
Pin type: | straight, stackable |
Current rating: | 3 A |
