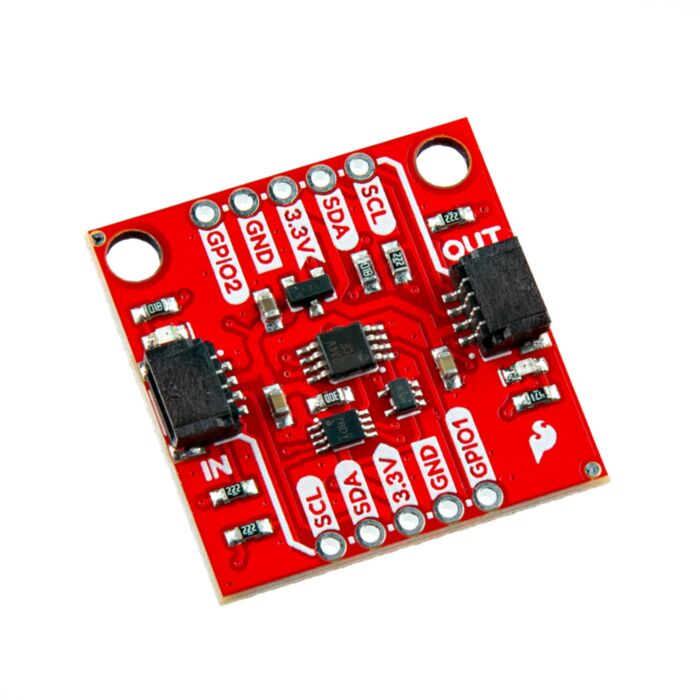

SparkFun Qwiic Power Switch

SKU: PRT-26784 Brand: Sparkfun

Sometimes you wish you could switch something off to save power, and the SparkFun Qwiic Power Switch (QPS) allows you to do that!...

$16.20 AUD, inc GST

$14.73 AUD, exc GST

Available with a lead time
Expect dispatch between May 20 and May 23

Quantity Discounts:

10+ $14.28 (exc GST)
25+ $13.99 (exc GST)

The SparkFun Qwiic Power Switch (QPS) gives you the power to manage your Qwiic devices more efficiently. Many Qwiic boards, especially high-power ones like our high-accuracy GNSS boards, draw significant current even in standby mode. With the QPS, you can selectively turn off these devices to conserve energy and extend your battery life.

However, the QPS offers even more functionality; it includes I²C bus isolation, allowing you to mix 100kHz and 400kHz I²C devices on the same bus without conflict. Isolate slower devices to avoid slowing down communication with faster ones.

For added flexibility, the QPS also provides two extra GPIO pins that can be used as inputs or outputs to control other components in your project. It works seamlessly with the SparkFun Qwiic Mux, enabling you to control and power multiple devices, even those sharing the same I²C address.

Our Arduino Library makes integrating the QPS into your projects easy, with comprehensive examples for power switching, bus isolation, and GPIO control. Enhance your Qwiic projects with the SparkFun Qwiic Power Switch and take control of your power management!

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started With the SparkFun Qwiic Power Switch Guide

Features

PCA9536
- 4-Bit I²C to Parallel Port Expander
- Operating Voltage (V_CC): 2.3V to 5.5V
- (Note: Qwiic operation must be limited to 3.3V)
- Operating Temperature: -40°C to +85°C
- 400kHz Fast I²C Bus
- Input/Output Configuration Register
- Polarity Inversion Register
- Internal Power-On Reset
- No Glitch on Power Up
- Standby Current Consumption (Typical): 0.2µA
- I²C Address: 0x41
PCA9306
- Dual Bidirectional I²C Bus Voltage-Level Translator
- Lockup-free Operation for Isolation
IN and OUT Qwiic Connection Ports
IN and OUT I²C Pull-Up Resistors
2x Extra GPIO Pins
IN and OUT Power LEDs
- Can be disabled for low power applications
Jumpers
- IN power LED
- OUT power LED
- IN I²C Pull-Up Resistors
- OUT I²C Pull-Up Resistors
Board Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
Weight: 2.40g
