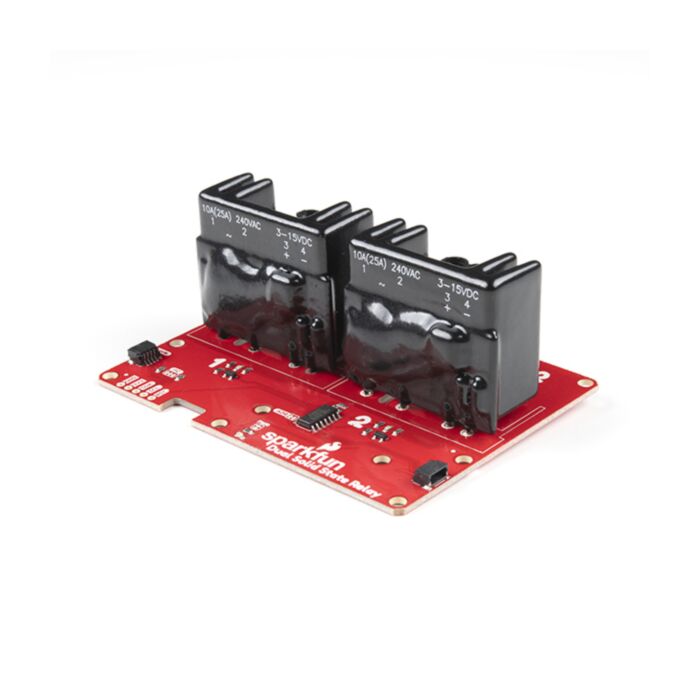

SparkFun Qwiic Dual Solid State Relay

SKU: COM-16810 Brand: Sparkfun

The SparkFun Qwiic Dual Solid State Relay is a power delivery board that allows users to switch two AC loads from a low power microcontroller using the SparkFun...

$279.95 AUD, inc GST

$254.50 AUD, exc GST

Available with a lead time
Expect dispatch between May 15 and May 20

Quantity Discounts:

3-6 $246.86 (exc GST)
6+ $241.77 (exc GST)

Warning: this product if used with high voltages (such as 240VAC) requires a license to work with in most regions.

The SparkFun Qwiic Dual Solid State Relay is a power delivery board that allows users to switch two AC loads from a low power microcontroller using the SparkFun Qwiic connect system. The board features two 25A/250VAC solid state relays that utilize the Zero Cross Trigger method so you can toggle two loads on a 60Hz AC carrier signal on and off up to 120 times per second!

An ATTiny84 acts as the "brain" of the SparkFun Qwiic Dual Solid Relay to accept I²C commands to toggle the two relays as well as a few other special commands. The I²C address of the ATtiny84A is software configurable so, if you have a seriously big power project in mind, you could daisy chain over 100 Qwiic Dual Solid State Relays.

Messing with such high voltage is dangerous! We've included many safety precautions onto the PCB including ground isolation between the relay and other circuitry and a milled out area isolating each side of AC. However, with all the safety precautions included with the SparkFun Qwiic Dual Solid State Relay, this is still a power accessory for users who are experienced around, and knowledgeable about high AC voltage. If you're not comfortable with handling AC voltage in this way, you may want to check out the IoT Power Relay instead.

Note: The relays are rated for a max of 25A with forced air cooling. If you do not have forced air cooling, 10A max through the relays is recommended.

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started with the SparkFun Qwiic Dual Solid State Relay Guide

Features

Operating Voltage: 2.5-3.6V (3.3V recommended)
I²C Address: 0x0A (Default) 0x0B (Alternate via jumper select)
Load Voltage Range: 12-280VAC
Max Current (Through Relay): 25A(240VAC with forced air cooling)
Zero Cross Trigger
Normally Open Circuit Only
2x Qwiic Connector
