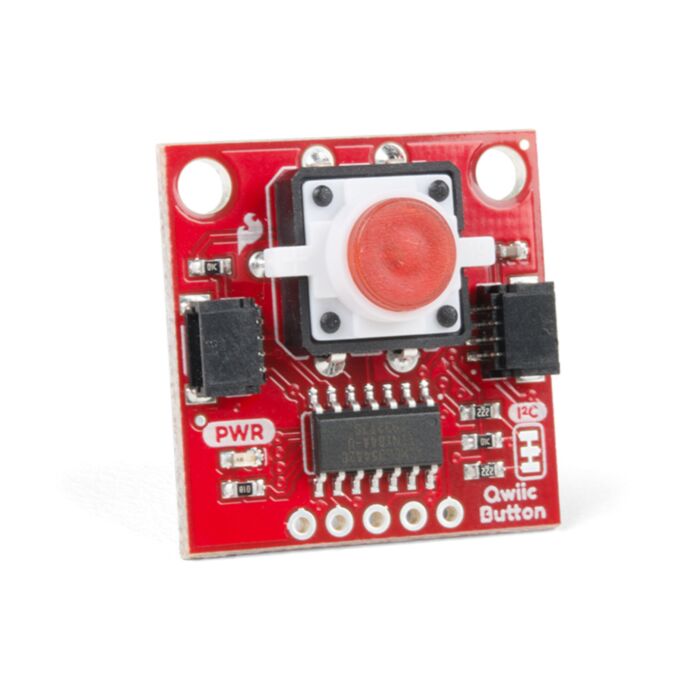

SparkFun Qwiic Button - Red LED

Rating:

100% of 100

SKU: BOB-15932 Brand: Sparkfun

Buttons are an easy and tactile way to interface with your project, but why would you want to deal with debouncing, polling, and wiring up pull-up resistors? The...

$9.05 AUD, inc GST

$8.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $7.98 (exc GST)
25+ $7.82 (exc GST)

Buttons are an easy and tactile way to interface with your project, but why would you want to deal with debouncing, polling, and wiring up pull-up resistors? The Qwiic Button with built-in red LED simplifies all of those nasty worries away into an easy to use I²C device! Utilizing our Qwiic Connect System, using the button is as simple as connecting a cable and loading up some pre-written code!

If you need multiple buttons for your project, fear not! Each button has a configurable I²C address, so you can daisy-chain multiple buttons over Qwiic and still address each one individually. We've got an example in our Arduino library that provides a super-easy way to configure your Qwiic Button to whatever I²C address you desire. You can download the library through the Arduino library manager by searching 'SparkFun Qwiic Button' or you can get the GitHub repo as a .zip file and install the library from there.

In addition to handling blinking and debouncing, the Qwiic Button has configurable interrupts that can be configured to activate upon a button press or click. We've also taken the liberty of implementing a FIFO queue onboard the Qwiic Button where it keeps an internal record of when the button was pressed. This means that code on your microcontroller need not waste valuable processing time checking the status of the button but instead can run a small function whenever the button is pressed or clicked! For more information on interrupts check out our guide here!

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started with the SparkFun Qwiic Button Guide

Features

12mm Red LED Button rated for 50mA
Built in LED can be configured for your desired level of blinkiness!
Each button has a configurable I²C address
Configurable interrupts - check out our guide here!
FIFO queue
Don't like the color red? Check out the SparkFun Qwiic Button Breakout and add another colored button!
