SparkFun Portability Shield

SKU: DEV-27510 Brand: Sparkfun
The SparkFun Portability Shield adds all the user interface bits needed to take a SparkFun development board into the field...
Special Price $51.49 AUD, inc GST
Regular Price $64.04 AUD, inc GST
$46.81 AUD, exc GST
Special pricing ends 23 June 2025
* this special may end earlier than shown

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Important: The SparkFun Portability Shield is available for pre-order. Orders will be fulfilled in the order they are received. If you are ordering this product alongside "Live/in-stock" products and want to receive these products ASAP, be sure to designate your order for split shipments in checkout. Due to global supply chain shortages, Sparkfun cannot guarantee dates for when Sparkfun will have stock of this product.

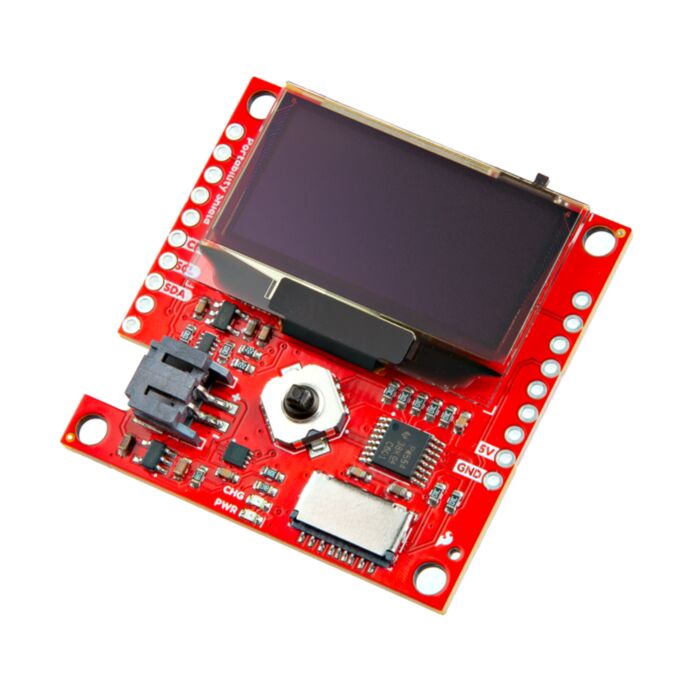

The SparkFun Portability Shield adds all the user interface bits needed to take a SparkFun development board into the field. A LiPo battery connector, charger, fuel gauge, and an on/off switch address your power needs. A friction-fit microSD connector allows for data logging. The 1.3in. OLED and a five-way navigation switch provide an excellent user interface. Locking 0.1in. headers along the shield's edge make it easier to solder male pins in place.

I2C is used to interface with the display, fuel gauge, and five-way navigation switch (GPIO expander PCA9554). SPI is used to communicate with the microSD card. The power switch uses an ideal diode (LM66200) to disconnect the battery from the system for a sleep current of approximately 4µA.

The Portability Shield has been designed to be usable with any compatible main board, with the RTK Postcard being the first! It’s important to note that the RTK Postcard is designed to have full functionality when combined with the Portability Shield!

Get Started With the SparkFun Portability Shield Guide

Features

  • 1.3in. OLED Display
    • 7-bit Unshifted Address: 0x3D (default), 0x3C
  • Input Voltage
    • 5V via LiPo or VIN
  • Power Switch: ON/OFF
  • Five-Way D-Pad Navigation
  • MCP73831T Single Cell LiPo Charge IC
    • Charge Rate Set to ~500mA
  • MAX17048 Fuel Gauge
    • 7-bit Unshifted Address: 0x36
  • AP2112K 3.3V Voltage Regulator
  • PCA9554 I2C 8 GPIO Expander
    • Interfaces with 5-way navigation switch and microSD card detect
    • 7-bit Unshifted Address: 0x20
  • microSD Socket Friction Fit
  • 2.2kO Pull-Up Resistors
  • Jumpers
    • D/C - OLED I2C Address
    • I2C Pull-Up Resistors
    • PWR - Power LED
    • CHG - Charge Status LED
  • Board Dimensions
    • 43mm x 43mm
