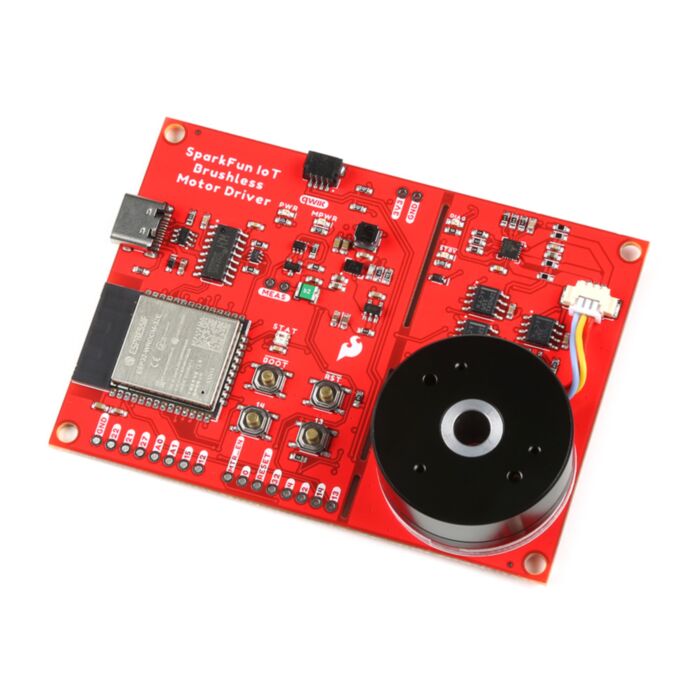

SparkFun IoT Brushless Motor Driver (ESP32 WROOM, TMC6300)

SKU: ROB-22132 Brand: Sparkfun

The SparkFun IoT Brushless Motor Driver is a powerful WiFi & BLE capable motor driver that can control any 3-phase BLDC motor including the one on-board...

$162.57 AUD, inc GST

$147.79 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 16

Quantity Discounts:

5+ $145.57 (exc GST)

The SparkFun IoT Brushless Motor Driver is a powerful, easy-to-use motor driver that can control any 3-phase BLDC with built-in WiFi and Bluetooth® capabilities! However, with our on-board Three Phase Brushless Gimbal Motor, you can be sure of getting the best performance and reliability without needing to find your own motor. It features the TMC6300 from ADI + Trinamic, a high-performance motor driver that allows you to control the motor using a microcontroller, such as the ESP32 WROOM, which is included on the board. The SparkFun IoT Brushless Motor Driver is perfect for various IoT applications, such as controlling robots, drones, and other high-performance devices.

The TMC6300 is a powerful, easy-to-use three-phase motor driver with up to 2A (1.4ARMS) of total drive current. Separate high-side and low-side control of the three half-bridges allows for incredible control of each phase of the motor commutation. We've found the Arduino Simple Field Oriented Control library to work well with the TMC6300 motor driver.

However, a field-oriented control (FOC) algorithm requires some feedback to close and optimize the control loop. Therefore, Sparkfun integrated a TMAG5273 hall-effect sensor and INA240A1 current sensor amplifiers (both manufactured by Texas Instruments) into the IoT motor driver board design. This allows users to incorporate a position sensor and current sensing into the FOC algorithm or any feedback control loop they implement.

Additionally, this motor driver also features a hall-effect sensor, three in-line current sensors for each motor phase, and a low-side current sensor to gather information about the status of the motor to return to the user. It also features two user buttons, a Qwiic connector, and a user-configurable RGB LED for more customizability!

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun IoT Brushless Motor Driver

Includes

IoT Brushless Motor Driver board
Gimbal Motor
Mounting Screws
Motor Spacers

Features

USB-C Connector
ESP32 Microcontroller
TMC6300 Motor Driver
TMAG5273 Hall Effect Sensor
Current Sensors
- INA240 Current Sense Amplifier
- MCP6021 Operational Amplifier
WS2812 RGB LED
3-Pin JST Connector (to Gimbal Motor)
4 Buttons
Gimbal Motor
Qwiic Connector

Documents

Schematic
Eagle Files
Board Dimensions
Hookup Guide
- Firmware
Arduino Libraries:
- Simple FOC Arduino Library
  - Documentation
- TMAG5273 Arduino Library
Component Datasheets:
Qwiic Info Page
GitHub Hardware Repository
Product Showcase Video
