SparkFun GPS Breakout - XA1110 (Qwiic)

SKU: GPS-14414 Brand: Sparkfun

The SparkFun XA1110 GPS Breakout is a small I2C-supported module built for easy hookup, thanks to our Qwiic Connect System. Equipped with the XA1110 GPS module from...

$66.96 AUD, inc GST

$60.87 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 25 and Apr 29

Quantity Discounts:

6+ $59.96 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

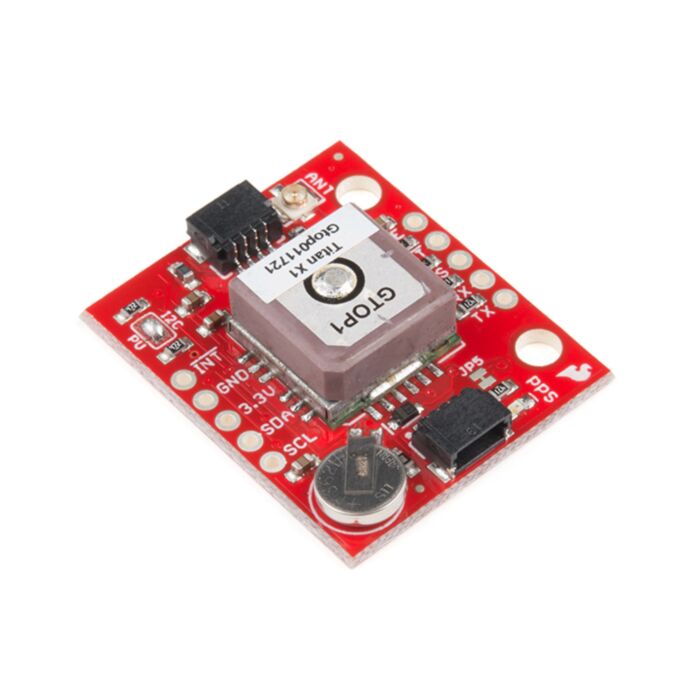

The SparkFun XA1110 GPS Breakout is a small I²C-supported module built for easy hookup, thanks to our Qwiic Connect System. Equipped with the XA1110 GPS module from GTOP, this board utilizes the MediaTek MT3333 chipset, loaded with specialized SparkFun firmware that enables both I²C and serial ports simultaneously. Using I²C means you won't have to tie up your serial port with GPS, leaving it open to other possibilities.

This GPS Breakout supports up to 210 PRN channels with 99 search channels and 33 simultaneous tracking channels. With support of GPS, GLONASS, QZSS, SBAS and more, the onboard XA1110 can provide even more accurate positioning in multiple locations. Additionally, the XA1110 GPS Breakout is configured with an onboard RTC battery that enables a warm-start functionality, giving the X1 just five seconds to first fix, as well as a U.FL connector that provides you the option to hook up an external antenna via a U.FL cable.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started With the SparkFun XA1110 GPS Breakout Guide

Features

33 tracking/99 acquisition-channel GPS GLONASS receiver
Supports QZSS & SBAS (WAAS, EGNOS, MSAS, GAGAN)
Sensitivity: -165dBm
Update Rate: up to 10Hz
12 multi-tone active interference canceler
2x Qwiic connectors
U.FL connector
Onboard RTC battery
