SparkFun GPS Breakout - Chip Antenna, SAM-M10Q (Qwiic)

SKU: GPS-21834 Brand: Sparkfun

The SAM-M10Q includes a built-in chip antenna and is compatible with the L1 band on all five GNSS constellations...

$89.40 AUD, inc GST

$81.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

6-12 $78.84 (exc GST)
12+ $77.21 (exc GST)

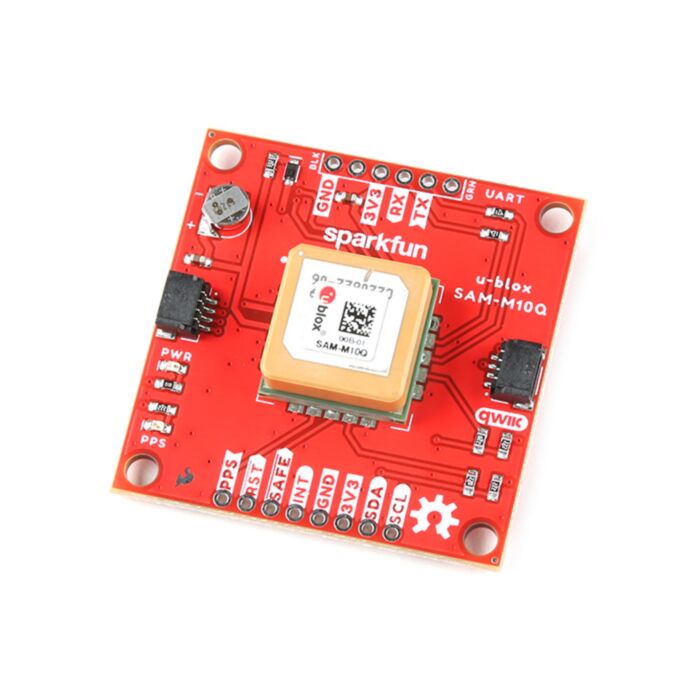

The SparkFun SAM-M10Q GPS Breakout features the SAM-M10Q chip-antenna module from u-blox^©. The M10Q line is the successor to u-blox's M8Q found on the SparkFun GPS Breakout - Chip Antenna, SAM-M8Q (Qwiic), and is a drop-in replacement with updated features to reduce power consumption by almost half while also improving performance and accuracy. The SAM-M10Q can receive up to four GNSS constellations at once which improves time-to-fix and positional accuracy even in areas with a limited view of the sky.

The SAM-M10Q includes a built-in chip antenna and is compatible with the L1 band on all five GNSS constellations (GPS L1 C/A, QZSS L1 C/A L1S, GLONASS L1OF, BeiDou B1C, and Galileo E1B/C). It has a horizontal position accuracy of 1.5m, a max update rate of 18Hz when transmitting with just one GNSS constellation (max of 5Hz with four GNSS), and a cold start time to fix of 23 seconds. The board includes a rechargeable 3V/1mAh battery to provide backup power for up to four hours to maintain a hot start of just a single second.

We designed this board to integrate into the Qwiic system that requires no soldering to connect it to the rest of your I²C system. However, the board still breaks out 0.1"-spaced pins for users who prefer a soldered connection or prototyping on a breadboard.

U-blox-based GPS products are configurable using the Windows program called u-center2 (it is highly recommended to only use u-center2 with this board and not the original u-center). This program lets you customize all sorts of settings for the SAM-M10Q including baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GPS, etc. Sparkfun also have an Arduino library for configuring the SAM-M10Q.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started With the SparkFun SAM-M10Q GPS Guide

Board Dimensions

40.64mm x 40.64mm

Features

u-blox M10 receiver
Reception of up to four concurrent GNSS constellations
Compatible GNSS Constellations
- GPS L1 C/A
- QZSS L1 C/A L1S
- GLONASS L1OF
- BeiDou B1C
- Galileo E1B/C
1.5m horizontal position accuracy
Update Rate
- Max 5Hz (Four GNSS)
- Max 18Hz (One GNSS)
Time-to-Fix (Four GNSS)
- Cold Start: 23 sec
- Aided Start: 1 sec
- Hot Start: 1 sec
Max Altitude: 80,000m
Max Velocity: 500m/s
Velocity Accuracy: 0.05m/s
Heading Accuracy: 0.3deg
Time Pulse Accuracy: 30ns (RMS)
3.3V VCC and I/O
Current Consumption (Four GNSS)
- Acquisition: ~13mA
- Tracking (Continuous): 10mA
- Tracking (Power Save): 5mA (Max Three GNSS)
Backup Battery: 3V/1mAh
Two Qwiic Connectors
PTH Connections
- 3.3V/GND
- Serial UART
- I²C
- Interrupt (INT)
- Safe Boot (SAFE)
- Reset (RST)
- Time Pulse (PPS)

Documents

Schematic
Eagle Files
Board Dimensions
Hookup Guide
Datasheet (SAM-M10Q)
Integration Manual (SAM-M10Q)
Product Summary
u-blox Protocol Specification
u-center Software
SparkFun u-blox GNSS Arduino Library - v3
Building a GPS/GNSS System
GitHub Hardware Repository
