Adafruit Perma Proto Bonnet Mini Kit

Rating:
100% of 100
SKU: ADA3203 Brand: Adafruit
Design your own Bonnet or pHAT, attach custom circuitry and otherwise dress your Pi Zero with this jaunty prototyping Bonnet kit! To add to the Adafruit Bonnet party...
$9.15 AUD, inc GST
$8.32 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 06

Quantity Discounts:

  • 10-25 $7.98 (exc GST)
  • 25+ $7.74 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

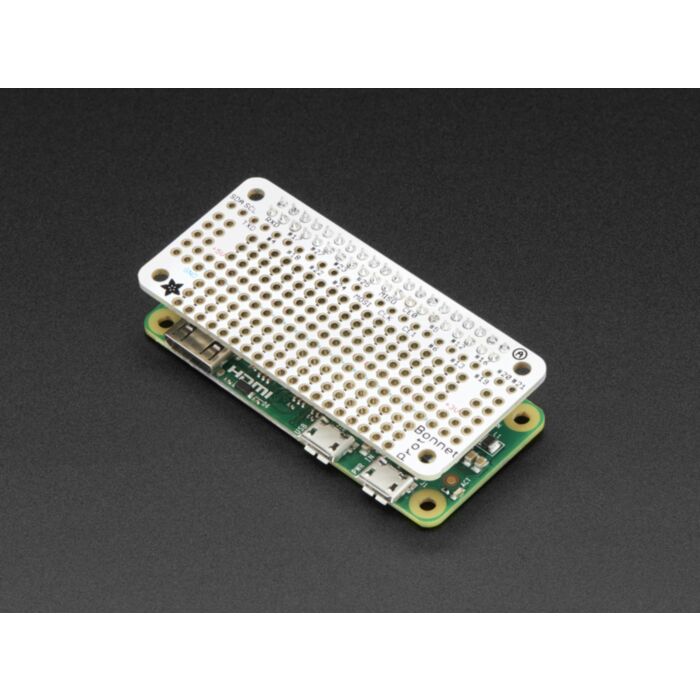

Design your own Bonnet or pHAT, attach custom circuitry and otherwise dress your Pi Zero with this jaunty prototyping Bonnet kit!

To add to the Adafruit Bonnet party, Adafruit have this Perma-Proto inspired plug in daughter board. It has a grid of 0.1" prototyping soldering holes for attaching chips, resistors, LED, potentiometers and more. The holes are connected underneath with traces to mimic the solderless breadboards you're familiar. There's also long power strips for +3V, +5V and Ground connections to the Pi. Near the top Adafruit break out nearly every pin you could want to connect to the Pi (#26 didn't quite make the cut).

The Perma-Proto Bonnet comes with a printed circuit board and a single 2x20 GPIO Header for Raspberry Pi to put your Perma-Proto on top of your Raspberry Pi Zero (like a nice little bonnet...). Unlike our Perma-Proto HATs, this design does not include an EEPROM, so you can 'stack' it with other Bonnets and pHATs without worrying about an EEPROM address collision.

You can customize your Perma-Proto setup using a standard 2x20 stacking header or extra tall 2x20 stacking header. You can also swap out the 2x20 header with a slim 2x20 type if you want it to sit closer to the Pi, or an extra tall one if you want it to sit above the USB/Ethernet ports.

A bit of light soldering is required to attach the header to the PCB but it's easy work.

This bonnet is designed for use with Raspberry Pi Zero but you can put on top of any Raspberry Pi with a 2x20 connector, it will just not stick out as far. They also offer a full 'HAT' sized version for Pi A+, B+, Pi 2 & 3.

Raspberry Pi Zero not included!

Technical Details

Product Dimensions: 65.1mm x 30.1mm x 1.5mm / 2.6" x 1.2" x 0.1"

Product Weight: 5.3g / 0.2oz

This product is listed in:

Raspberry Pi>Pi Zero Hats
