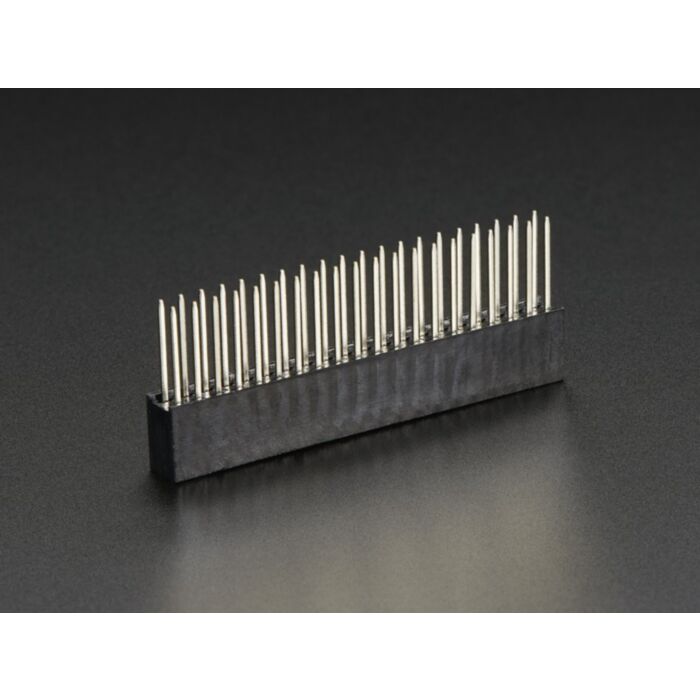

GPIO Stacking Header for Pi A+/B+/Pi 2/Pi 3 - Extra-long 2x20 Pins

SKU: ADA2223

$4.75 AUD, inc GST
$4.32 AUD, exc GST

More Views

GPIO Stacking Header for Pi A+/B+/Pi 2/Pi 3 - Extra-long 2x20 Pins
4.75 AUD

SKU: ADA2223

$4.75 AUD, inc GST
$4.32 AUD, exc GST
4 reviews 0 5 4.8
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Connect your own PCB to a Raspberry Pi B+ and stack on top with this normal-height female header with extra long pins.  The female header part is about 8.5mm tall, good for small HATs that do not to clear the USB/Ethernet jacks. This header has extra long 10mm pins, compared with Adafruit's plain version which is the same base height but has 3mm header pins instead. With 10mm you can have a HAT that has extra pins to stack another HAT on top!

You'll get one header per order.

Note: The Raspberry Pi Model A+, Raspberry Pi 2 and Raspberry Pi 3 are also compatible with this product!


//www.youtube.com/embed/V8INp4nMGfU?start=263

Technical Details

  • Dimensions: 5mm x 51mm x 19mm / 0.2" x 2" x 0.7"
  • Pin Length: 10mm
  • Pin Spacing: 2.5mm / 0.1"
  • Pin Thickness: 0.6mm / 0.02"
  • Weight: 4.1g

This product is listed in:

Documentation and Resources:
Educational Workshops
  • Raspberry Pi Workshop for Beginners
  • Welcome to the Raspberry Pi Workshop for Beginners! Here you'll be able to follow along with our series of bite-sized videos that cover everything you'll need to know to get started with your Raspberry Pi, and start making awesome projects. My name...
  • Rain Gauge Data Logger
  • Summary A Raspberry Pi 3B is used to collect digital counts from an electronic rain gauge (1mm of rain per reed switch closure by magnetic see-saw). It has been running without issues for over 12 months. A UPS powers the Pi so it is immune from short power glitches. The total count is displayed on an LCD screen with reset and inc/dec test buttons. “To HTML” and “To LCD” routines are also included to simp...
  • Television Media Centre
  • Introduction: I have a flat screen television that is about 7 years old that I purchased before Smart TVs were commonly available. What I wanted to achieve with My Pi project was to turn my slightly old TV into a media centre. I wanted to play music through my TV as well as play saved movies and stream internet content. It was important for me to be able to stream ABC iView and SBS On Demand as they provide a free service and ...
  • GraviTrack Enhancements - Lights and Sound
  • Introduction Searching for solar panels and related items on the Core Electronics website; I came across the Solarbotics GraviTrack Marble Machine Kit. I thought the kit would be a good educational tool for the grandkids. The kit was a hit, but the power switch was hard to access at the back of the machine and it only turned on and off. I had been experimenting with programmable RGB LEDs, Piezo speakers and a Light dependent re...
  • Mass SD card Image Writer
  • We've built a mass SD card writer using a Raspberry Pi 3 Model B, some USB hubs and SD card readers. This beast has enough ports to write 49 SD cards at once! At Core Electronics, sometimes logistics hang-ups mean that suppliers cannot meet our demand for pre-flashed SD cards. During these periods we have to pick up the slack by manually imaging blank SD cards we source ourselves. Of course, this is a super-tedious process, and ...
  • Raspberry Pi IoT Doorbell
  • This Raspberry Pi, IoT Doorbell is basically a simple smart Door Bell, which takes a photo of whoever rings it, and emails it to the specified email address, and keeps all the photos in a folder. (along with going Ding-Dong). Any Problems, just leave a comment/start a discussion below....

Product Comments


Customer Reviews

  1. Review by Mansour verified purchaser
    Rating
    100

    Pretty solid item. Replaced my Terraberry DAC's headers with this so I can add an IR receiver to the the RPi as well. Works like a charm. (Posted on 5/10/2018)

  2. Review by David verified purchaser
    Rating
    100

    Bought to enable another hat to be mounted on top of Adafruit Ultimate GPS Hat. But found that would not allow RPi case to be closed. In the end it was not a problem to use the standard header because the GPS Hat has plenty of bread-board type connections for all 40 pins. (Posted on 9/07/2018)

  3. Review by Dale verified purchaser
    Rating
    100

    These are great for adding multiple hats etc to the Pi Zero. (Posted on 16/11/2017)

  4. Review by Michael verified purchaser
    Rating
    80

    For my specific needs I had to trim the pins slightly but they work great. (Posted on 3/11/2016)
