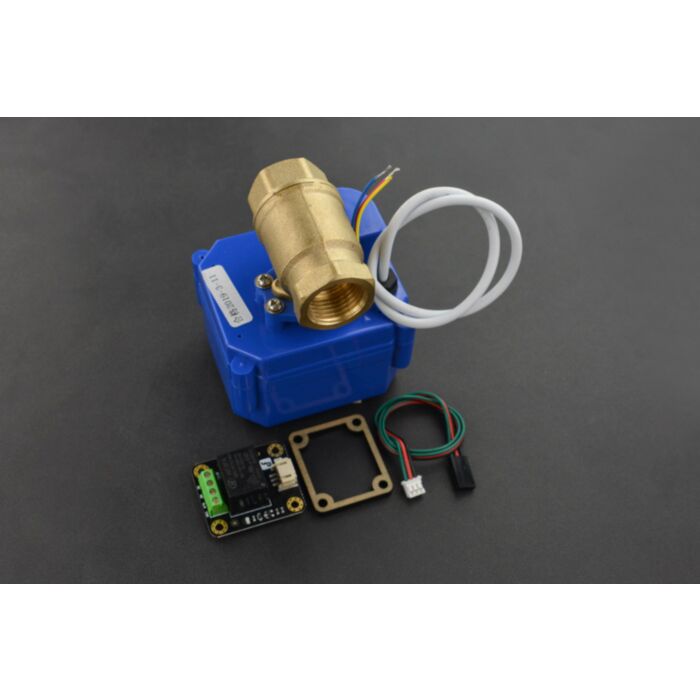

Solenoid Valve-DN15

SKU: FIT0616 Brand: DFRobot
Use this 12V solenoid valve to control the flow of liquid! This is an automated and manual solenoid valve that comes with three colors control wires: red, yellow...
$48.80 AUD, inc GST
$44.36 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 21 and Nov 25

Quantity Discounts:

  • 10-25 $43.04 (exc GST)
  • 25+ $42.15 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Use this 12V solenoid valve to control the flow of liquid! This is an automated and manual solenoid valve that comes with three colors control wires: red, yellow and blue. Connect the blue wire to positive pole to open the valve, or connect the red wire to positive pole to close the valve. The yellow wire is the shared ground line. If the valve is powered off, it will stop working and keep the current state. You can open or close the valve manually then. This solenoid water valve integrates valve and DC motor in one piece, inside of which has metal reduction gearbox with large torque, low noise and easy to install. We also adopt sealing design for the motor to make the entire structure more reliable. The valve features stable performance, high sensitivity and anti-electromagnetic interference. It can withstand 1.0Mpa static pressure. Use this product with our Gravity: Digital 5A Relay Module to easily control the valve, for instance, to open or close the valve in a particular amount of time. Besides, it can be widely used in smart home, automatic agriculture, fisheries and other projects that require the precise controlling of water flow.

Arduino hook-up diagram

FIT0616-Arduino Connection Diagram

Smart Water Tank Diagram(FIT0616+KIT0139)

Specification

  • Operating Temperature: -10°C - 50°C
  • Rated Voltage: 12V DC
  • Rated Current: 100mA
  • Rated Power: 2W Max
  • Valve Pressure: 1.0MPa
  • Insulation Resistance: >20MΩ
  • Torque: 30-60kg.cm
  • Pipe Inner Dimension: 15mm/0.59”

This product is listed in:

Components & Parts>Solenoids>Solenoid Valves
