Slim Sticker-type GSM/Cellular Quad-Band Antenna - 3dBi uFL

SKU: ADA1991

$4.95 AUD, inc GST
$4.50 AUD, exc GST

More Views

Slim Sticker-type GSM/Cellular Quad-Band Antenna - 3dBi uFL
4.95 AUD

SKU: ADA1991

$4.95 AUD, inc GST
$4.50 AUD, exc GST
In stock, with a short lead time. 138 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 28th of Aug with Express Post within Australia.
Shipping Offer

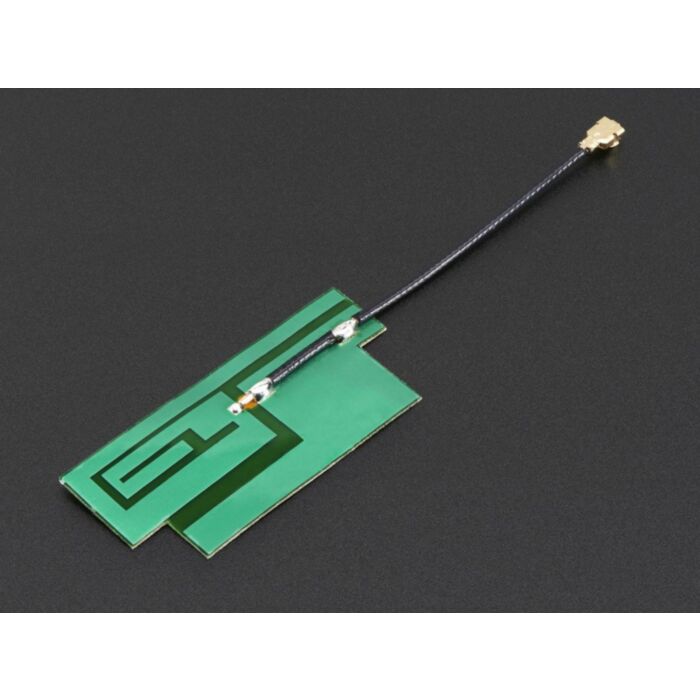

That's one slim cellular antenna! At just 75mm long from tip to tip and and with a thickness of just 2mm, this 3dBi GSM antenna is slim, compact and sensitive, with a 3dBi gain.  The antenna juts out from its base with stick-on back so you attach it to an enclosure if you're making something like, say, a DIY phone.  It has a tiny uFL connector on the end - which is perfect for the FONA - but will also work well for any other RF project on the 850/900/1800/1900/2100 bands, such as any other Cellular or GSM/GPRS device.

They also offer a version of this antenna with a longer 300mm cable.


Technical Details

Datasheet

Dimensions:

  • Length w/ stick-on back: 75mm/3.0" long with stick-on back
  • Antenna length: 38mm/1.5"
  • Weight: 0.5g
