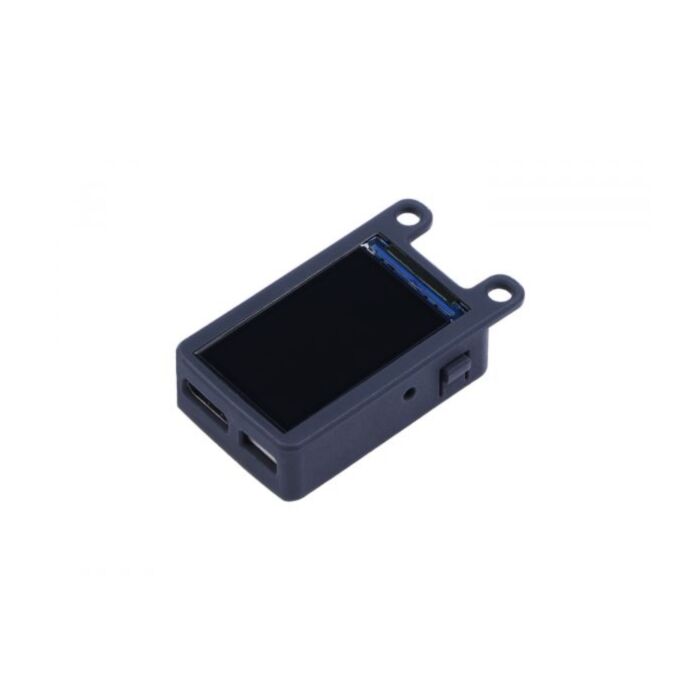

Sipeed MaixSense A010 - 3D TOF Sensor Module with Screen

SKU: SS114993027 Brand: Seeed Studio

MaixSense-A010 is an extremely cost-effective 3D sensor module composed of BL702 + OPNOUS 100x100 TOF launched by Sipeed, which supports a maximum...

$70.10 AUD, inc GST

$63.73 AUD, exc GST

Quantity Discounts:

6-12 $61.18 (exc GST)
12+ $59.26 (exc GST)

Out of Stock

MaixSense-A010 is an extremely cost-effective 3D sensor module composed of BL702 + OPNOUS 100x100 TOF launched by Sipeed, which supports a maximum resolution of 100x100 and 8-bit precision, and comes with a 240x135 pixel LCD display to preview the depth map after colormap in real time.

MetaSense A010 is an all-in-one, low cost, flexible and easy to use 3D ToF(Timeof-Flight) solution for loT applications. It consists of an on-board 100x100 array ToF sensor and ToF processor, which combines ToF sensing, ToF signal processing and application algorithm on a single board. It integrates the following algorithms: Specific applications, such as ranging, multi area human body positioning and sensing, posture monitoring, posture control, keystone correction, etc. These features are widely used in loT applications like white goods, L aser TV, smart projector, smart illumination, smart parking, smart home facilitis.etc.

MetaSense A010 is power supplied via USB2.0, and it outputs ToF depth data and RGB image at a speed of 30fps. With its sophisticated optic, electronic and high-accuracy algorithms are able to calculate depth data as accurately as at the millimeter level. Dual support ROS system, open ROS1 + ROS2 access function package, can quickly obtain depth data and depth map.

MS-A010 has strong compatibility and is based on serial protocol. It can be connected to single-chip development boards such as K210 bit or Linux development boards such as Raspberry Pi for secondary development. It uses the serial port protocol to provide interfaces and transmit data. The physical interfaces we provide include type-c (virtual serial port) and a 1.0mm 4pin motherboard (UART), which can obtain depth map data for integration.

Features

Powerful chip support: Main chip BL702 RISC-V 144MHz
Combination of ToF and RGB sensors: The use of cameras and RGB sensors provides depth vision features
Depth range 0.15 -2.5 meters: High precision Low and customizable power consumption: supporting lithium battery charge management
Outdoor compatibility: The hard shell is suitable for outdoor scenes

Application

SLAM and robotic navigation
Surveillance & security inspection
People counting & tailgate detection
VR/AR & gesture recognition
Autopilot and AGV obstacle avoidance
3D modeling
Dimensions measurement
Liveness Detection & facial recognition

Specifications

CPU	BL702-32-bit RISC CPU with FPU, Up to 144MHz
Memory	132KB RAM & 192KB ROM
Dimension	23.2540.7010.50 mm
Connector	USB Type-C, 1.25mm Connector
External interface	USB2.0, UART
Supply voltage	5V / 0.5A
Operating temperature	-20 ~ +50°C
TOF camera parameter
Resolution	100x100 Nax
Frame rate	Up to 30 FPS
FOV	TOF:70°(H) * 60°(V)
Illumination	940nm VCSEL
Measurement distance	0.2-2.5m
Distortion	<2.5%
Measurement accuracy	<=1%/cm

Part List

1x Sipeed MaixSense A010
1x USB type-C
1x Connector to Dupont Adapter

Documentations

Maixsense A010 size.pdf
