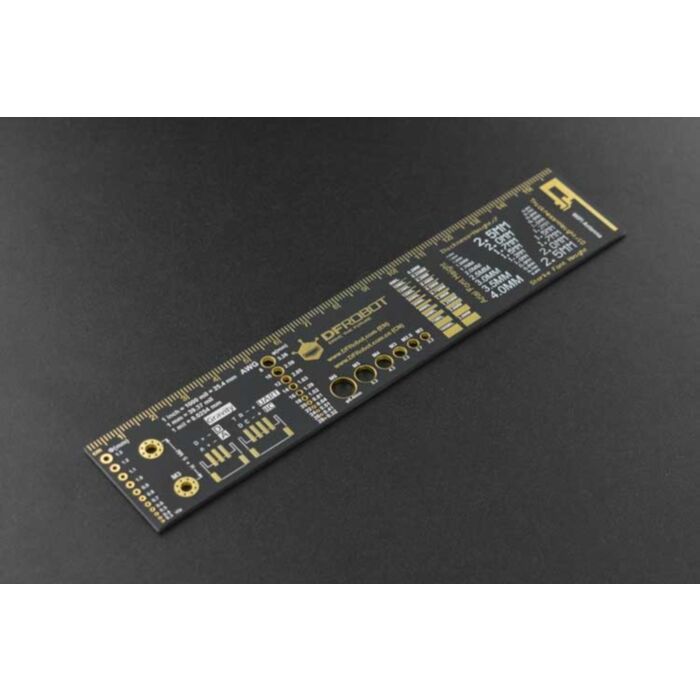

DFRobot PCB Engineering Ruler - Mini(6.3inches)

SKU: DWG0014-M Brand: DFRobot

This is a PCB engineering ruler used daily by DFRobot electronic engineers, the short PCB ruler is only the size of the palm of your hand, making it more delicate...

$8.20 AUD, inc GST

$7.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 31st of Dec

Quantity Discounts:

10-25 $7.23 (exc GST)
25+ $7.08 (exc GST)

Introduction

This is a PCB engineering ruler used daily by DFRobot electronic engineers, the short PCB ruler is only the size of the palm of your hand, making it more delicate and compact, and easy to carry. The information on the engineering ruler can provide references for electronic engineers when designing PCBs and improve work efficiency. It is an essential auxiliary tool for DFRobot engineers. In addition, its precise scale and hard glass fiber material are a good helper for ruler drawing and model making. Now we recommend it to you, hope it can help you too.

Applications

Wire Diameter Reference(AWG): 8/10/12/14/16/18/20/22/24/26/28
Via Design Reference(MM): 0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.1/1.2/1.5
Screw Hole Aperture Design Reference: M2/M2.5/M3/M4/M5/M6
Resistor Package: 0402/0603/0805/1206/PR0603/1812/2512
Capacitor Package: 0402/0603/0805/1206/1210/3216/6032/D60/F60
PowerIC Package: SOT343/SOT23/SOT23-5/SOT23-6/SO8/SOT89/SOT223
Crystal Package: 3213/3215/5032/3225/49SMD
Gravity Design Definition Standard
Screen Printing Actual Size Reference

Specification

Dimension(L x W x H): 160 * 32 mm/6.3 * 1.26 inches

Shipping List

DFRobot PCB Engineering Ruler - Mini *1
