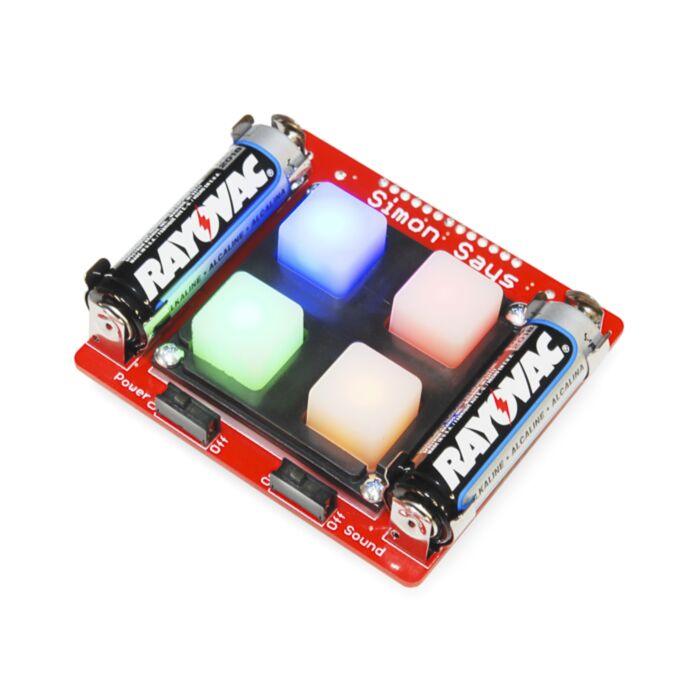

Simon Says - Through-Hole Soldering Kit

SKU: KIT-10547

$37.97 AUD, inc GST
$34.52 AUD, exc GST

More Views

Simon Says - Through-Hole Soldering Kit
37.97 AUD

SKU: KIT-10547

$37.97 AUD, inc GST
$34.52 AUD, exc GST
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is the latest version of our popular through-hole Simon Says Kit. We’ve made some changes to the board that should make it easier than ever for the beginner to build! All components are through-hole, making this kit a great place to start when you’re learning to solder. When building this kit, you’ll have a chance to solder a 28-pin microprocessor, LEDs, battery clips and more.

After you have successfully assembled the kit, you will have a greater knowledge of through-hole soldering and the tools, techniques, and terminology required to populate your own PCB prototype. You will have a development platform with 5 outputs (LEDs and buzzer), 5 inputs (buttons), and serial for debugging. And, of course, you’ll have your very own Simon game!

Checkout the assembly instructions - we’re pretty proud of them. The kit even includes batteries! Assembly time varies, but for a true beginner with no soldering experience, the kit can take 20-40 minutes to assemble. A soldering iron and wire cutters are the bare minimum tools required.

Kit Includes:

  • 1x ATmega328 - pre-programmed with Simon firmware
  • 1x Buzzer
  • 2x 0.1μF Cap
  • 1x 10K Resistor
  • 4x LEDs (blue, yellow, red, green)
  • 2x Slide Switch
  • 4x Battery Clips
  • 2x AA Batteries
  • 1x Button pad
  • 1x Bezel
  • 4x Standoffs and screws
  • 1x Assembly instructions

Note: This video was made using the older version of our Simon kit, so there are a few components that won’t be in the same place as in your kit, but the parts are still the same so the video should still be helpful.
