Shaftless Vibration Motor 10x2.0mm

Rating:

100% of 100

SKU: POLOLU-1638 Brand: Pololu

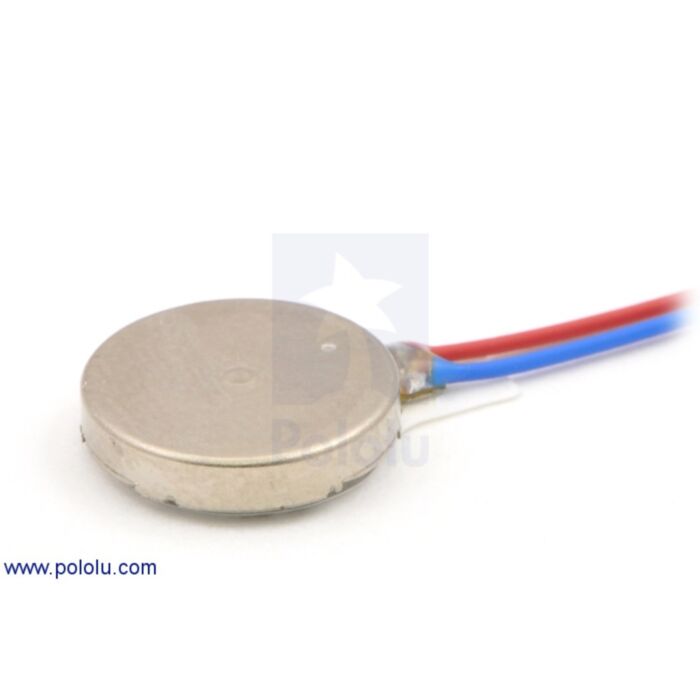

This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads. The shaftless design keeps this motor small: 10 mm in diameter and 2.0 mm in height.

$8.30 AUD, inc GST

$7.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $7.25 (exc GST)
25+ $7.02 (exc GST)

This shaftless vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 2.0 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project. The motor has a 3M adhesive backing on it for easy mounting and 1.5" leads for making quick connections. Polarity is not important; the motor can run CW or CCW.

Pololu offer this vibration motor in three different sizes:

All three of these motors have the same vibrational amplitude (0.75g), but the 10×3.4mm version has more mass than the other two, which results in a slightly greater vibrational force.

Specifications

Size	10 mm diameter, 2.0 mm height
Weight	0.8 g
Recommended operating voltage	2.5 – 3.5 V
Vibration amplitude at 3 V	0.75g
Speed at 3 V	14500 RPM (12000 RPM min)
Free-run current at 3 V	60 mA (80 mA max)
Startup current at 3 V	120 mA max
Motor resistance	29 ± 6 O
Operating temperature	-10°C to +60°C
Storage temperature	-30°C to +70°C

Dimensions (in mm)

People often buy this product together with:

Shaftless Vibration Motor 10x3.4mm

Shaftless Vibration Motor 8x3.4mm

Pololu 38 kHz IR Proximity Sensor, Fixed Gain, High Brightness

Dimensions

Size:	10.0 x 2.0 mm
Weight:	0.8 g

General specifications

No-load speed @ 3V:	14500 rpm¹
No-load current @ 3V:	60 mA²
Voltage:	3 V³
Vibration amplitude:	0.75 g

Notes:

1: 12000 RPM minimum at 3 V.
2: 80 mA maximum at 3 V.
3: Recommended operating range is 2.5 to 3.5 V.
