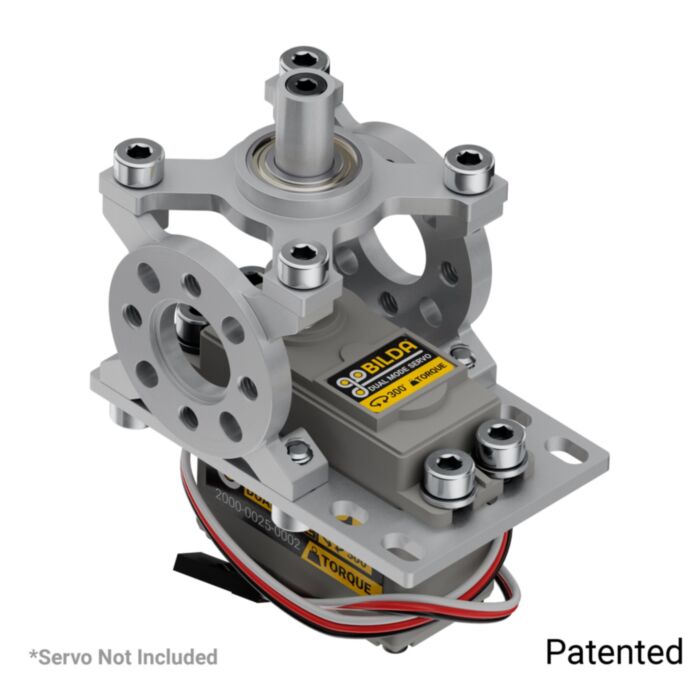

ServoBlock® (Standard Size, 25 Tooth Spline, 8mm OD Shaft)

SKU: GB-3202-0001-2503 Brand: goBilda

Isolate the radial load from your servo with a ServoBlock®! This version is designed for a standard size servo with an H25T output spline......

$41.80 AUD, inc GST

$38.00 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Dec 31

Quantity Discounts:

10-25 $36.10 (exc GST)
25+ $34.20 (exc GST)

Isolate the radial load from your servo with a ServoBlock®! This version is designed for a standard size servo with an H25T output spline. It has an 8mm diameter round shaft onto which you can install an 8mm clamping hub. This allows you to quickly and easily adjust the position of components attached to the hub without requiring disassembly.

The round shaft’s profile provides for the infinite indexability of motion components like hubs and couplers, while its length allows for more axial adjustment along the shaft for the attached component. The overall “block” structure also facilitates robust support of the servo shaft by maximizing the distance between the servo-to-shaft fastening location and the bearing supporting that shaft. And thanks to the side mounts with holes on the goBILDA® 16mm square patterns, this ServoBlock® boasts versatile attachment options.

Tools Required:

2.5mm Hex Key (L-Key or T-Handle)
3mm Hex Key (L-Key or T-Handle)
7mm Nut Driver

Included Components:

QTY	SKU	Name
2	1221-0032-0001	1221 Series 2-Side, 2-Post Pattern Mount (32-1)
1	1603-0032-0008	8mm Bore Face Thru-Hole Pillow Block (32mm x 32mm Mounting Pattern)
1	1801-0040-0001	1801 Series Servo Plate (For Standard Size Servos) (includes four 8mm length M4 screws and four 4mm ID x 8mm OD washers)
1	1911-0025-0836	8mm Round Servo Shaft (25 Tooth Spline, 36mm Length)
8	2800-0004-0008	2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 8mm Length)

Downloads

Specs

Weight	58g with Hardware
IP	Patented

This product is listed in:

goBILDA>MOTION>Servos>ServoBlocks>ServoBlocks for Standard Size Servos
goBILDA>ELECTRONICS>Servos>ServoBlocks>ServoBlocks for Standard Size Servos
