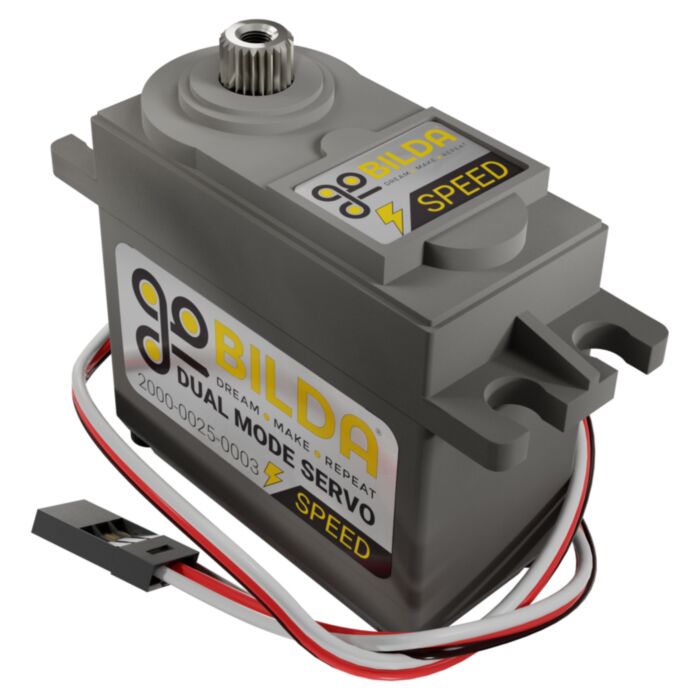

2000 Series Dual Mode Servo (25-3, Speed)

SKU: GB-2000-0025-0003 Brand: goBilda

Meet the Dual Mode ‘SPEED’ Servo. This servo is essentially the original

$56.81 AUD, inc GST

$51.65 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

6-12 $49.58 (exc GST)
12+ $48.03 (exc GST)

Meet the Dual Mode ‘SPEED’ Servo. This servo is essentially the original 2000-0025-0002 ‘TORQUE’ Servo, but with a lower ratio to achieve a quicker transit speed! Over 2x faster than its counterpart, this servo saves valuable time where it counts!

Just like the 25-2, this servo boasts two different modes which allow it to fill a variety of roles on your robot or project. In the default mode, the servo is able to rotate 300 degrees while having positioning feedback. In this mode, the PWM signal will determine the position of the servo. Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Downloads

STEP File

Specs

Weight	58g
Gear Ratio	135:1
Output Shaft Style	25 Tooth Spline
Voltage Range	4.8V ~ 7.4V
No-Load Speed (4.8V)	0.11 sec/60° (90RPM)
No-Load Speed (6.0V)	0.09 sec/60° (115RPM)
No-Load Speed (7.4V)	0.07 sec/60° (145RPM)
Stall Torque (4.8V)	7.9 kg.cm (110 oz-in)
Stall Torque (6.0V)	9.3 kg.cm (130 oz-in)
Stall Torque (7.4V)	10.8 kg.cm (150 oz-in)
No-Load Current (4.8V)	190mA
No-Load Current (6.0V)	200mA
No-Load Current (7.4V)	230mA
Stall Current (4.8V)	2000mA
Stall Current (6.0V)	2500mA
Stall Current (7.4V)	3000mA
Max PWM Range (Default)	500 - 2500µsec
Max PWM Range (Continuous)	1000 - 2000µsec
Travel per µsec (Default)	0.15°/µsec
Max Travel (Default)	300°
Pulse Amplitude	3-5V
Direction	Clockwise w/ Increasing PWM Signal
Deadband Width	4µsec
Motor Type	Brushed DC
Feedback Style	5KO Potentiometer
Output Shaft Support	Dual Ball Bearing
Gear Material	Steel
Wire Length	300mm
Wire Gauge	22 AWG
Connector Type	3-Pos TJC8 Servo Connector [MH-FC]
