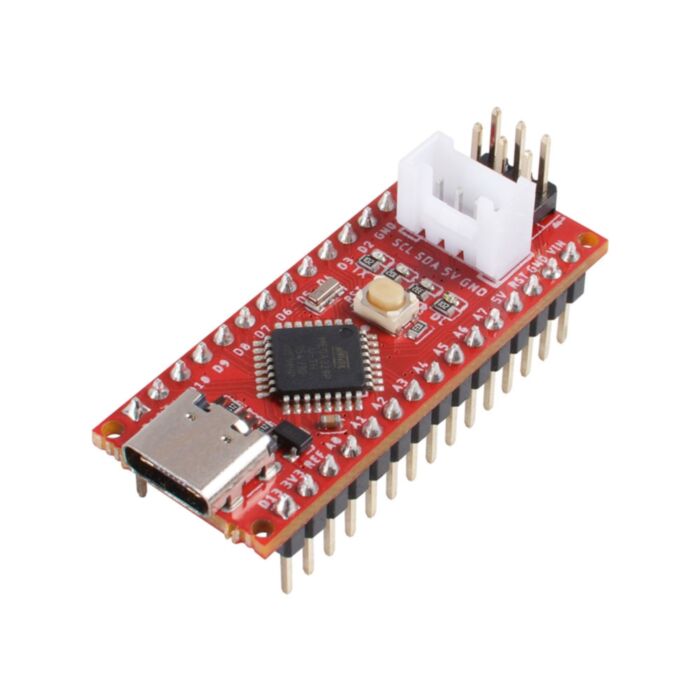

Seeeduino Nano (Seeed Studio)

Rating:
100% of 100
SKU: SS102010268 Brand: Seeed Studio
The Seeeduino Nano is a compact board similar to the Seeeduino V4.2/Arduino UNO, and it is fully compatible with Arduino Nano on pinout and sizes. Compare to Arduino Nano, Seeeduino Nano use Type-C instead of Mini-USB, which is symmetrical and reversible.
$15.55 AUD, inc GST
$14.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of May

Quantity Discounts:

  • 10-25 $13.57 (exc GST)
  • 25+ $13.15 (exc GST)
- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Seeeduino Nano is a compact board similar to the Seeeduino V4.2/Arduino UNO, and it is fully compatible with Arduino Nano on pinout and sizes. Compare to Arduino Nano, Seeeduino Nano use Type-C instead of Mini-USB, which is symmetrical and reversible.

Hardware resources and an Arduino IDE setup guide can be found on the manufacturer's product wiki.

Seeeduino Nano VS. Seeeduino V4.2

The same as Seeedunio V4.2, Seeeduino Nano is built around Atmega328P -- 8-bit AVR microcontroller. So you can use the same program code on both boards. However, the dimensions of the two are significantly different. Less than a quarter of the size, but with almost the same features, Seeeduino Nano will save more space for your project, more suitable for space-constrained scenes.

 Model   Processor  Input Voltage     IO Voltage    Analogue In/Out     Digital In/Out    USB               Grove Connector
Seeeduino V4.2     ATmega328P     5V / 7-12V 3.3V/5V 6/0 14/6 micro-USB 2xI2C+1xUART
Seeeduino Nano ATmega328P 5V / 7-12V 5V 8/0 14/6 Type C 1xI2C
Arduino Nano ATmega328P 5V / 7-12V 5V 8/0 14/6 Mini-USB

Seeeduino Nano Add-on

One more thing, Seeed Studio know that only one on-board Grove connector may not be enough, so we made this Grove shield for Arduino Nano, which has 3 Grove digital connectors, 3 Grove analog connectors, 1 Grove I2C connector, and 1 Grove UART connector. For most projects, these Grove interfaces are more than enough, but if you still need to connect more grove modules, you can also use our Grove - I2C Hub

Seeeduino Nano Add-on

Note: This product does not contain this shield, if you need it, please click on Grove shield for Arduino Nano to view.

Features

  • 43mm*18mm Tiny board
  • 16M ATmega328P
  • Fully compatible with Arduino Nano
  • USB Type C for Programming and power
  • On-board Grove I2C connector
  • Breadboard-friendly
  • Check Seeed's blog 20 Best Arduino Nano Projects that you must try to get project ideas and get started with your Nano boards now!

Hardware Overview

Seeeduino-Nano Pinout



Resources

This product is listed in:

Arduino>Compatible Boards
