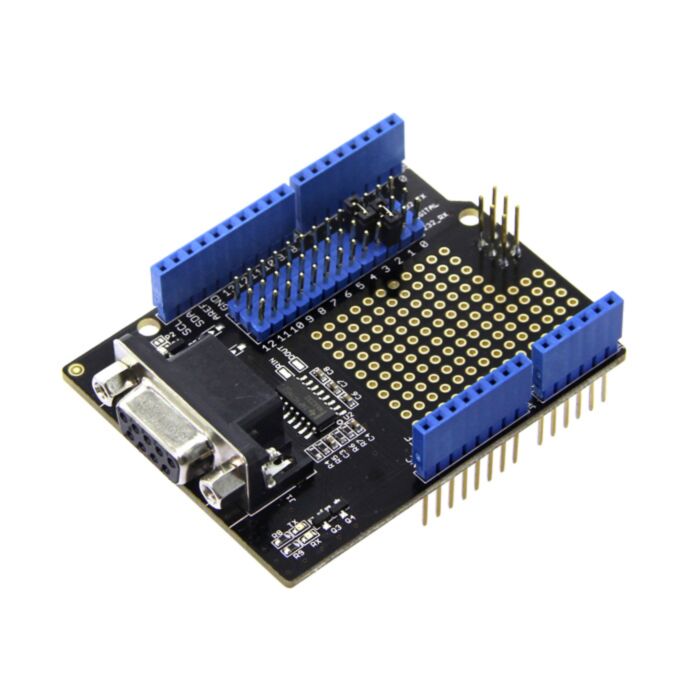

RS232 Shield (Seeed Studio)

SKU: SS113030016

$20.52 AUD, inc GST
$18.65 AUD, exc GST

More Views

RS232 Shield (Seeed Studio)
20.52 AUD

SKU: SS113030016

$20.52 AUD, inc GST
$18.65 AUD, exc GST


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

RS232 Shield is a standard communication port for industry equipment.This module is base on MAX232,which is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. The shield integrates DB9 connectors (female) that provide connection to various devices with RS232 interface. Also the RS232 headers will facilitate your connections and commissioning. It provides the welding areas to make full use of extra space on it, which is highly convenient for prototyping.
  • Meets or Exceeds TIA/EIA-232-F and ITU
  • Operates Up To 120 kbit/s
  • Low Supply Current
  • LED Indicator
  • DB9 Connectors(female)
  • Welding Areas
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.


Documentation and Resources:
