RP2040 Stamp Round Carrier

SKU: CE09189 Brand: Pimoroni
The Round Carrier is a reference design for the RP2040 Stamp as well as a full-fledged round RP2040 dev board. The Carrier comes with a combo 3-in-1...
$21.95 AUD, inc GST
$19.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

  • 10+ $19.35 (exc GST)
  • 25+ $18.95 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

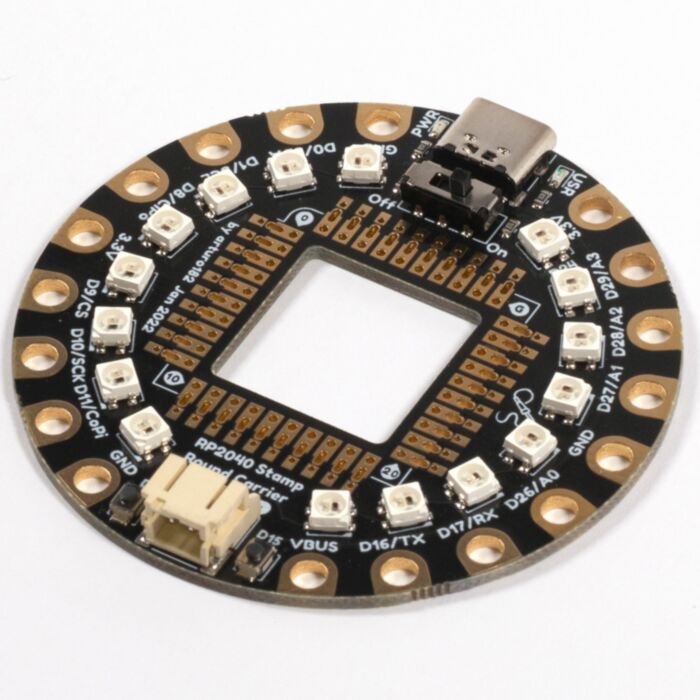

The Round Carrier is a reference design for the RP2040 Stamp as well as a full-fledged round RP2040 dev board.

The Carrier comes with a combo 3-in-1 SMD/TH/FlexyPin Stamp footprint, you can solder the Stamp directly to the Carrier, use 2mm pin headers + sockets to be able to plug it in and out, or use FlexyPins to pop the Stamp in and out of the Carrier would soldering the Stamp. This way the Carrier also acts as a great Stamp flashing and testing jig.

The Carrier extends the functionality of the Stamp by adding a ring of 16 Neopixels, an on/off switch, a LiPo connector, USR and PWR LEDs, two user buttons, and a USB Type-C connector.

You can use the Carrier in sewing using conductive thread, or using alligator clips.

By using the RP2040 Stamp Round Carrier, you get everything that comes with the Stamp itself:

  • 8MB of FLASH
  • 500mA 3.3V LDO
  • A Neopixel
  • LiPo supply and charging circuit (with charging LED)
  • A reset button
  • 12MHz crystal

On top of that you get:

  • A ring of 16 Neopixels
  • Combo 3-in-1 Stamp footprint (SMD/TH/FlexyPin)
  • Sewing (conductive thread) and alligator clip-friendly pads
  • An on/off switch
  • 3.7/4.2V LiPo connector
  • USR LED
  • Power (3.3V) LED
  • Two user buttons
  • USB Type-C connector

If you have the LiPo and USB Type-C connected, the battery will begin charging.

The pins are not 5V tolerant.

What you get

  • The RP2040 Stamp Round Carrier board
  • A pinout and functionality reference sheet
