RP2040 Stamp Carrier

SKU: SP012 Brand: Pimoroni

A reference design for the RP2040 Stamp, also a full-fledged RP2040 Uno form-factor development board! The Carrier is a reference design for the RP2040...

$17.75 AUD, inc GST

$16.14 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 10 and Apr 15

Quantity Discounts:

10+ $15.49 (exc GST)
25+ $15.01 (exc GST)

A reference design for the RP2040 Stamp, also a full-fledged RP2040 Uno form-factor development board!

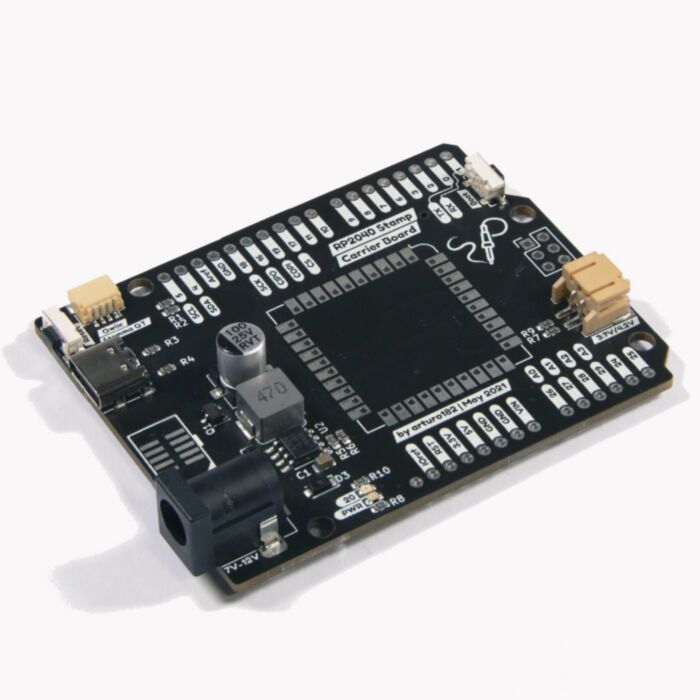

The Carrier is a reference design for the RP2040 Stamp. It comes with a combo SMD/TH Stamp footprint, you can solder the Stamp directly to the Carrier or use 2mm pin headers + sockets to be able to plug it in and out.

The Carrier extends the functionality of the Stamp by adding a BOOTSEL button, LiPo and Qwiic connectors, USR and PWR LEDs, an SWD header, and a USB Type-C connector.

The board can be powered from the LiPo, over USB, or with a DC jack.

By using the RP2040 Stamp Carrier, you get everything that comes with the Stamp itself:

8MB of FLASH
500mA 3.3V LDO
A Neopixel
LiPo supply and charging circuit (with charging LED)
A reset button
12MHz crystal

On top of that you get:

A bootsel button
3.7/4.2V LiPo connector
Qwiic connector
USR LED
Power (3.3V) LED
SWD header
USB Type-C connector
DC Jack

The DC Jack input is center-positive and supports voltages in the range of 7-12V. If you have the LiPo and either DC or USB connected, the battery will begin charging.

The board follows the Uno shield pinout, making it compatible with a large ecosystem of shields, as long as they work on 3.3V IOs. The pins are not 5V-tolerant.

The SWD header follows the Cortex 10-pin standard.

The CircuitPython firmware for the RP2040 Stamp comes with a built-in board file for the Carrier, you can access it using import stamp_carrier_board as board. After that, you can access all the Carrier pins and interfaces like you would with any other CPY board.
