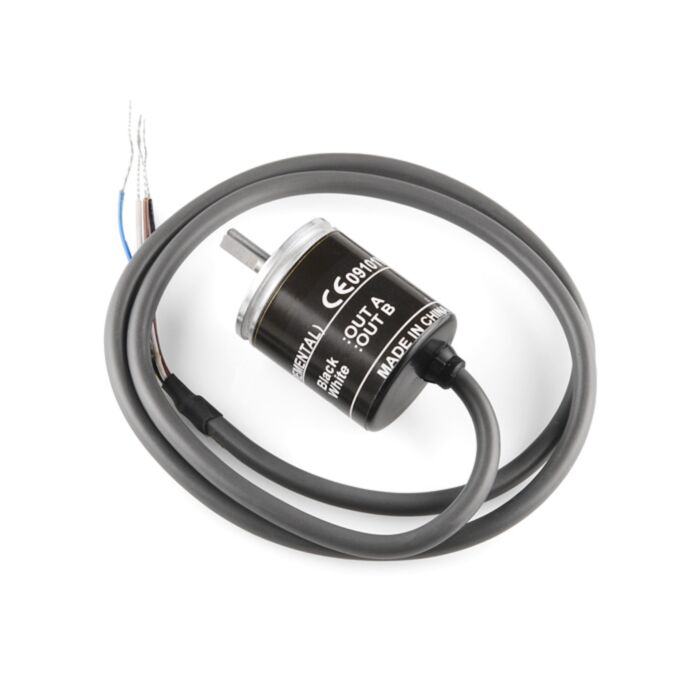

Rotary Encoder - 200 P/R (Quadrature)

SKU: COM-10932

$69.09 AUD, inc GST
$62.81 AUD, exc GST

More Views

Rotary Encoder - 200 P/R (Quadrature)
69.09 AUD

SKU: COM-10932

$69.09 AUD, inc GST
$62.81 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 223 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 2nd of Jul with Express Post within Australia.
Shipping Offer
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This 200 pulse per rotation rotary encoder outputs gray code which you can interpret using a microcontroller and find out which direction the shaft is turning and by how much. This allows you to add feedback to motor control systems. Encoders of this kind are often used in balancing robots and dead reckoning navigation but it could also be used as a very precise input knob. The encoder comes with a set screw coupler which will attach to any 4mm shaft.

Features:

  • Resolution: 200 Pulse/Rotation
  • Input Voltage: 5 - 12VDC
  • Maximum Rotating Speed: 5000rpm
  • Allowable Radial Load: 5N
  • Allowable Axial Load: 3N
  • Cable Length: 50cm
  • Shaft Diameter: 4mm

Documents:

Documentation and Resources:
