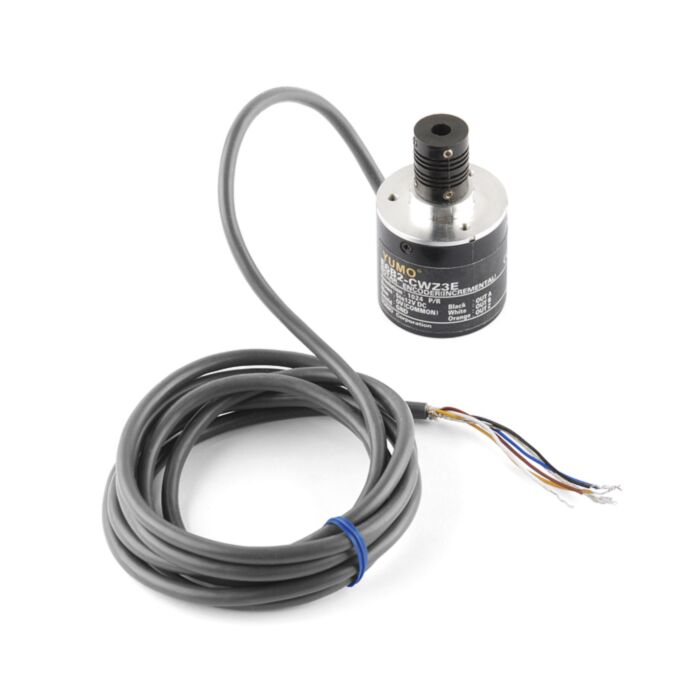

Rotary Encoder - 1024 P/R (Quadrature)

SKU: COM-11102

$69.09 AUD, inc GST
$62.81 AUD, exc GST

More Views

Rotary Encoder - 1024 P/R (Quadrature)
69.09 AUD

SKU: COM-11102

$69.09 AUD, inc GST
$62.81 AUD, exc GST
Shipping Offer

This 1024 pulse per rotation rotary encoder outputs gray code which you can interpret using a microcontroller and find out which direction the shaft is turning and by how much. This allows you to add feedback to motor control systems. Encoders of this kind are often used in balancing robots and dead reckoning navigation but it could also be used as a very precise input knob.

Features:

  • Resolution: 1024 Pulse/Rotation
  • Input Voltage: 5 - 12VDC
  • Maximum Rotating Speed: 6000rpm
  • Allowable Radial Load: 5N
  • Allowable Axial Load: 3N
  • Cable Length: 50cm
  • Shaft Diameter: 6mm

Documents:

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • How to Use Rotary Encoders
  • Hello and welcome to our tutorial on using rotary encoders. Today we’re going to be taking a look at what is a rotary encoder, how does it work, why we would use it over other sensory inputs and creating code to use them. Rotary encoders are el...
