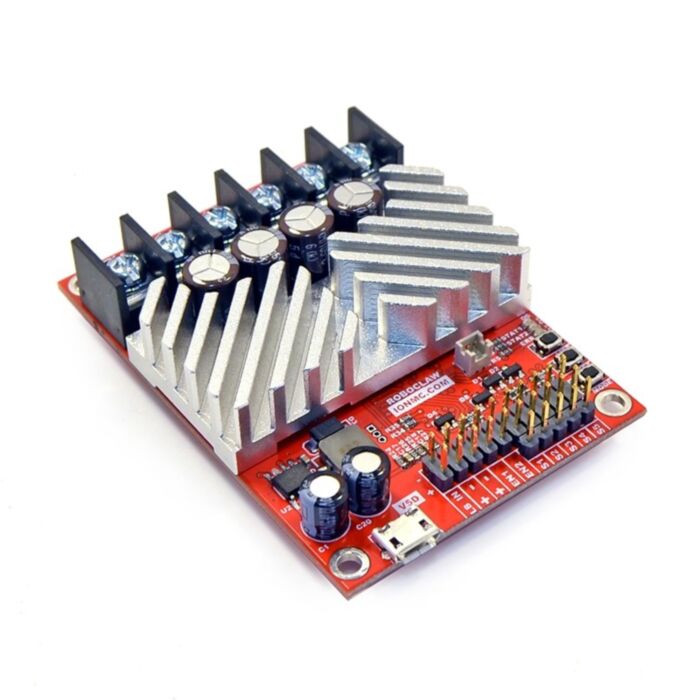

RoboClaw 2x15A Motor Controller

SKU: GB-IMC412 Brand: goBilda

The Roboclaw 2x15A motor controller by Ion Motion Control can supply two brushed DC Motors with 15 Amps continuous and...

$214.95 AUD, inc GST

$195.41 AUD, exc GST

Available with a lead time
Expect dispatch between May 14 and May 16

Quantity Discounts:

5+ $192.48 (exc GST)

The Roboclaw 2x15A motor controller by Ion Motion Control can supply two brushed DC Motors with 15 Amps continuous and up to 30 Amps peak. With its multi mode interface it can be controlled from USB, RC Radio, serial devices, analog and or microcontrollers such as an Arduino or Raspberry Pi. Dual quadrature encoders with up to 19.6 million pulses per second are supported. In addition, a wide range of sensor inputs including potentiometers and absolute encoders are supported. Roboclaw's close loop functionality creates absolute control over speed, velocity and direction regardless of loading changes. At the heart of Roboclaw is a high performance motion control intelligence which achieves a higher precision of control while providing better motor performance in open or closed loop modes. With Roboclaw's synchronous regenerative capabilities it will charge a supply battery during slow down or breaking action. With it's advanced circuitry it can also change direction during full throttle without damage! Roboclaw also incorporates a lithium cutoff mode protecting batteries from damage.

Features:

Bridge Channels	Yes
3.3V Safe Outputs	Yes
5V Tolerant Inputs	Yes
Encoder Auto Tune	Yes
Thermal Protection	Yes
Current Sense	Yes
User Selectable Peak Current	Yes
Battery Protection	Yes
Regenerative Braking	Yes
Over Voltage Protection	Yes
Under Voltage Protection	Yes
Self Diagnostics	Yes
Position Control Mode	Yes
Velocity Control Mode	Yes
Control Methods	Serial, RC or Analog Control

Tech Tips:

Motion Studio Settings:

Arduino:

Raspberry Pi:

Downloads

Specs

Weight	64g
Motor Channels	2
Max Continuous Current per Channel	15A
Max Peak Current per Channel	30A
Bridged Channels Peak Current	60A
Bridged Channels Continuous Current	30A
Max Voltage	34VDC
BEC	5VDC @ 3Amps
Motor Compatibility	Brushed DC
Encoder Compatibility	Relative and Absolute
Motor Direction	Bidirectional
