150W DC-DC Boost Converter 10-32V to 12-35V 6A (Step-up only)

Rating:
100% of 100
SKU: 018-DCDC-BOOST-150W Brand: Core Electronics

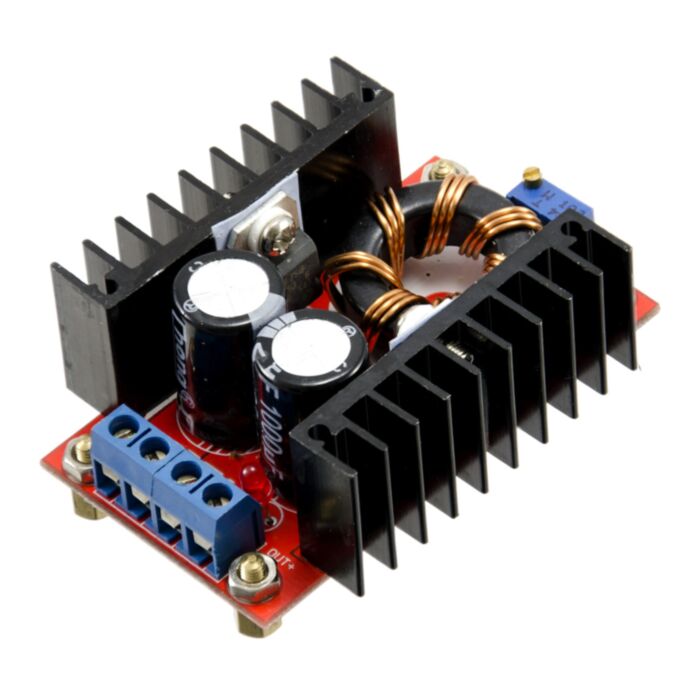

This DC-DC Boost Converter is well into the heavy duty end of the spectrum @ 150W; as you can tell by the huge toroidal inductor and dual heatsinks.
$9.85 AUD, inc GST
$8.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 4th of Mar

Quantity Discounts:

  • 10-50 $8.51 (exc GST)
  • 50+ $8.24 (exc GST)
- +

7 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This DC-DC Boost Converter is well into the heavy duty end of the spectrum @ 150W; as you can tell by the huge toroidal inductor and dual heatsinks.

Note the output voltage can't be lower than the input voltage.

Please note there is no reverse polarity protection. A series diode is recommended. For high loads this might not be an option; so be cautious of the input polarity or you might fry the module!

Features:

  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage :10-32V
  • Output voltage: 12-35V (adjustable)
  • Output Current: 10A (MAX)
  • Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
  • Output power: natural cooling 100W (MAX), enhance heat dissipation (fan cooling) 150W (MAX)
  • People have reported the device operates at 45°C when powered from a 12V battery and charging a 19V 3.42A notebook
  • Conversion efficiency: 94% @16VIN 19VOUT. This is fairly uniform, but will vary across the range.
  • Output Ripple: 2% (MAX) 20M-bandwidth
  • Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
  • Full load temperature rise: 45°C
  • No-load current: 25mA typical
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (we recommend a fuse and/or protection circuits at input)
  • Input Reverse Polarity Protection: None (we recommend a series diode at the input port
  • Dimensions: 47.2mm W x 65.6mm L x 26.5mm D

Some uses:

  • Adjustable power supply from car battery. For example, if powered by 12V, this module could be used to drive 14-35V devices.
  • High efficiency notebook charger: When this device is powered by 12V (your car battery for example), it could charge a laptop which typically requires 19V.
