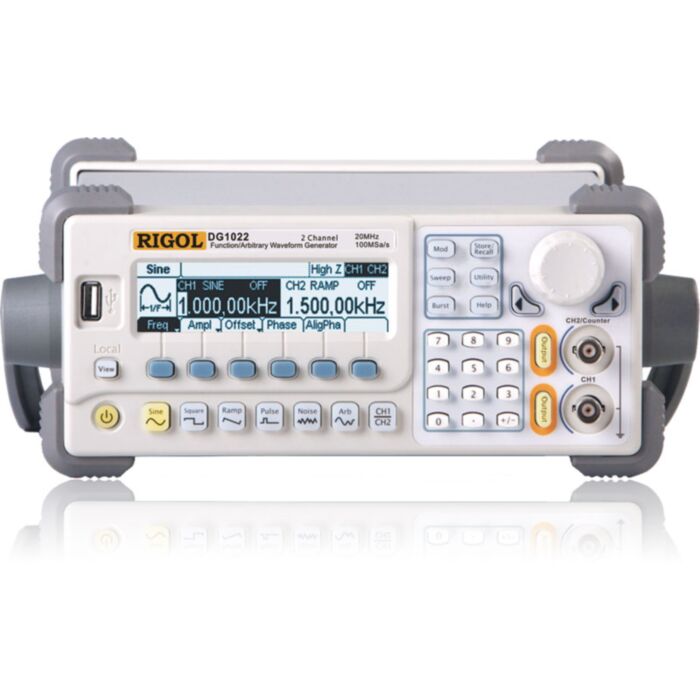

This Arbitrary Signal Generator from Rigol is a breakthrough in 20MHz, 2 channel generators that we love. The DG1022 is priced so affordably that it has proven to be the most popular choice for educational institutions carrying out laboratory upgrades around Australia.
- Output 5 standard waveforms, with the controls on the front panel. There is an additional built-in 48 arbitrary waveforms, accessible via the menu system.
- AM, FM, PM, FSK Modulation, linear/logarithm sweep and burst all available to be applied to any of the above signals.
- Abundant output and input features: waveform output; synchronous signal output; external modulation source, external clock reference (10 MHz) input, external trigger input.
- 2 full functional channels with settable phase
- Built-in high precision and wide band counter, the measurement range: 100 mHz ~ 200 MHz (single channel)
- Vertical Resolution 14bits
- Sample Rate 100MS/s
- Resolution 1 µHz
- Standard Waveforms Sine, Square, Ramp, Triangle, Pulse, Noise, Arb
- Arbitrary Waveform 4k points
- Amplitude 10mVpp to 10Vpp
- Accuracy (1kHz) ±2% of setting ±2mVpp
- Pulse 20.00ns to 2000.0s
- Modulation AM, FM, FSK, PM
- Sweep Linear or Logarithmic
- Channel Coupling & Copy
- Counter Range 100 mHz ~ 200 MHz
- Counter Functions Frequency, period, positive/negative Pulse width, Duty cycle
- I/O USB Device, USB Host
- Display LCD, 256 x 64, 4 Grey Levels
