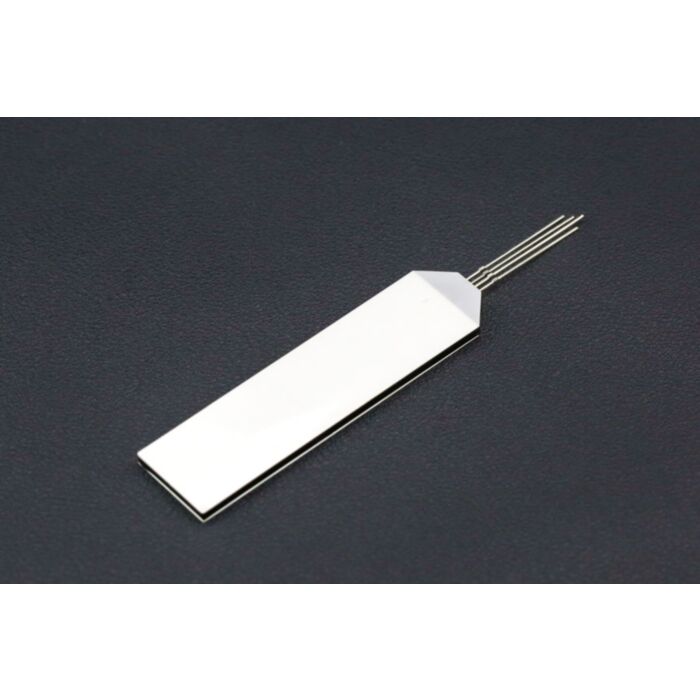

RGB LCD Backlight Module

Rating:
100% of 100
SKU: FIT0562 Brand: DFRobot
DFRobot has a Gravity I2C LCD1602 RGB Backlight Screen which backlight can be modulated to the different backlight colors and the display effect is very brilliant...
$2.60 AUD, inc GST
$2.36 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 07 and Apr 11

Quantity Discounts:

  • 10+ $2.27 (exc GST)
  • 25+ $2.20 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

DFRobot has a Gravity I2C LCD1602 RGB Backlight Screen which backlight can be modulated to the different backlight colors and the display effect is very brilliant. This RGB LCD backlight panel is its internal backlight component.



The RGB LCD backlight panel uses the RGB color model, this is an industry color standard that produces a wide variety of colors by varying three color channels: red (R), green (G), and blue (B), a total of 16 million colors, nearly all colors that human vision can perceive.

The RGB LCD backlight board has a built-in common anode diode with the black edge at the pins facing up, the pins from left to right are red, power positive, green and blue. It can be used for both backlighting and LED indicators.

Specification

  • Forward Voltage: 3.0V(Min) 3.2V(Max)
  • Size: Length 7.32 x 1.85 x 0.28 cm
  • Reverse Voltage: 5V
  • Limit power consumption: 75mW
  • Temperature condition: -40~80°C

Shipping List

  • RGB LCD Backlight Module x1
