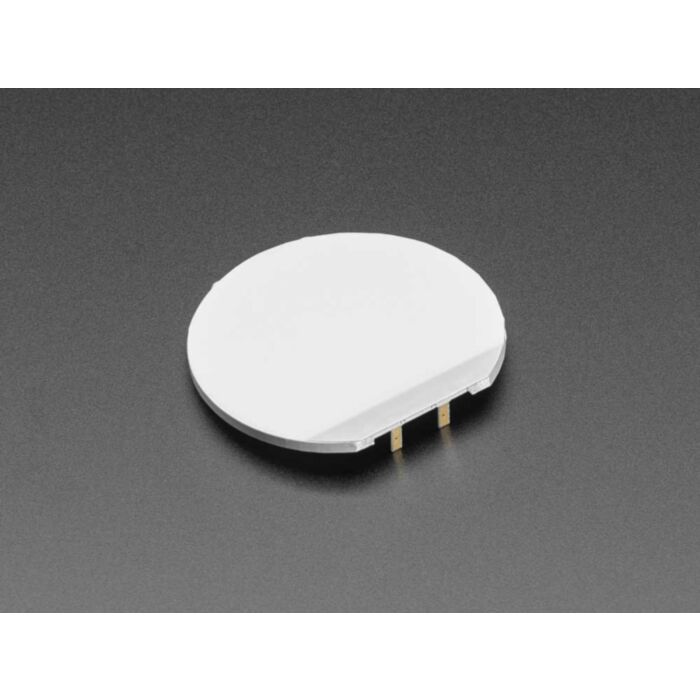

Round Semi-Circle Backlight LED - 50mm Diameter

SKU: ADA4882 Brand: Adafruit

These pretty circles of light are plastic diffused backlights, probably originally used in LCD gauge displays. Normally they're tucked behind the LCD and shine white light from below. Here, we've got the LEDs available individually, and they're really cool! Each LED is encased in a 2.2mm thick semi-circle of acrylic. The acrylic is a special type that is very good at diffusing light, so even though there are only two white LEDs, it provides near-uniform lighting. The other flat side of the diffuse has a reflector on it so you only get light from the top (otherwise the backlight would lose 1/2 the brightness unnecessarily)

$6.45 AUD, inc GST

$5.86 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 24 and Jan 29

Quantity Discounts:

10-25 $5.63 (exc GST)
25+ $5.45 (exc GST)

These pretty circles of light are plastic diffused backlights, probably originally used in LCD gauge displays. Normally they're tucked behind the LCD and shine white light from below. Here, Adafruit have got the LEDs available individually and they're really cool! Each LED is encased in a 2.2mm thick semi-circle of acrylic. The acrylic is a special type that is very good at diffusing light, so even though there is only two white LEDs, it provides near-uniform lighting. The other flat side of the diffuse has a reflector on it so you only get light from the top (otherwise the backlight would lose 1/2 the brightness unnecessarily)

You can treat this 50mm diameter backlight just like an LED, light with ~3V at 30mA current, and you get a pretty shape that you can mask with vinyl or draw over with a marker. Gels can be used to change the color. We think these would make great wearables without the need for EL or inverters. They're much brighter than EL and use less battery. The trade-off is these are not flexible at all.

Datasheet
