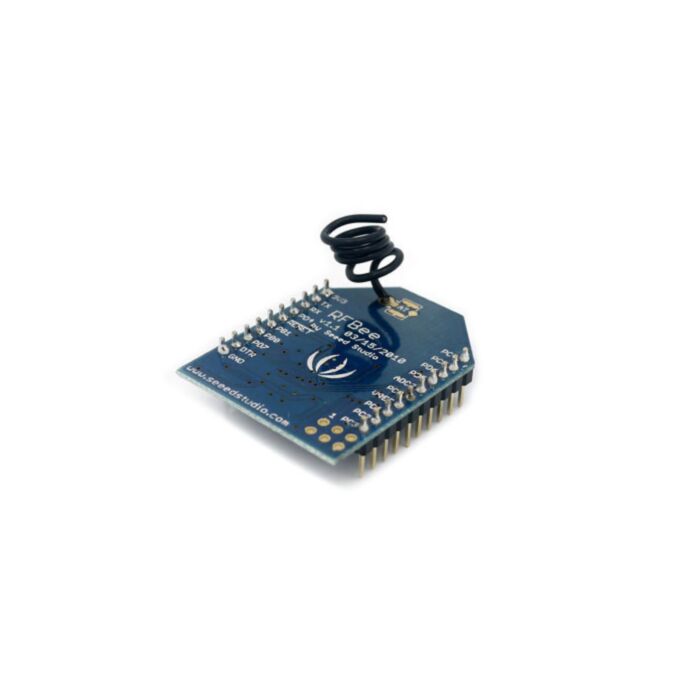

RFbee V1.1 - Wireless arduino compatible node (Seeed Studio)

SKU: SS113050002 Brand: Seeed Studio

The RFBee is a RF module providing easy and flexible wireless data transmission between devices. It is based on a AVR Atmega168 working as a fully functional...

$34.80 AUD, inc GST

$31.64 AUD, exc GST

Quantity Discounts:

10-25 $30.37 (exc GST)
25+ $29.42 (exc GST)

Out of Stock

The RFBee is a RF module providing easy and flexible wireless data transmission between devices. It is based on a AVR Atmega168 working as a fully functional Arduino connected via SPI to a TI CC1101 RF transceiver.

Features

Range: indoor/Urban: up to 50m; Outdoor line-of-sight: up to 120m;
Receiver sensitivity: -95dBm
RF data transmission rate: 4,800bps; 76,800bps
Working frequency : 868MHz & 915MHz
Communication type: Point to Point, or Point to Multipoint.
Easy-to-Use serial interface and rich extendable ports
Easy-to-Use AT command: Set working mode, Serial Baud Rate, etc.
Open source hardware and firmware
Socket compatible with the Xbee, so you can plug it into any Xbee socket as a quick replacement.

Note

only the Rx,Tx, VCC, GND pins are identical to the Xbee. RFbee will not communicate with Xbee, so RFbee need to be used on both ends of the wireless connection.

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

This product is listed in:

Wireless>General RF>Transceivers
