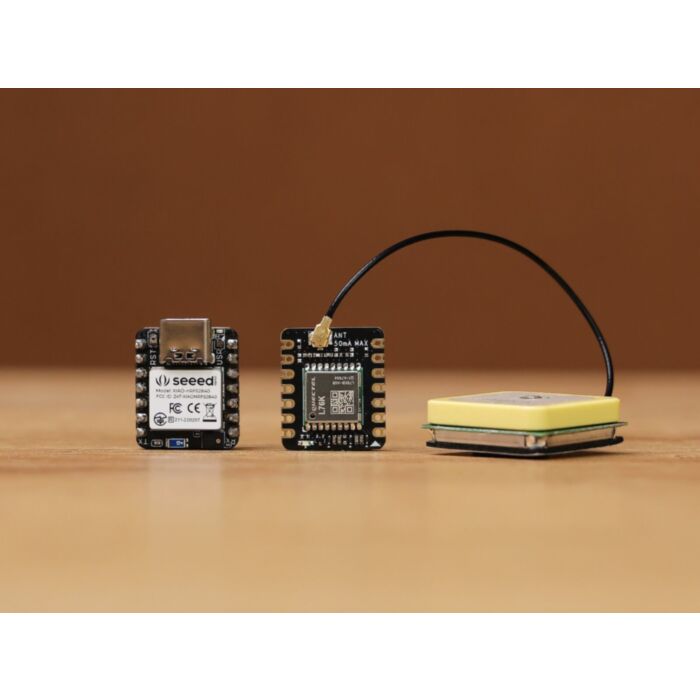

GNSS add on Module for Seeed Studio XIAO

SKU: SS109100021 Brand: Seeed Studio

Elevate your Seeed Studio XIAO projects with the L76K GNSS Module, offering high precision and energy efficiency with support for multiple satellite systems. Discover enhanced signal reception with a built-in amplifier and ceramic antenna for reliable, precise positioning.

$24.60 AUD, inc GST

$22.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $21.47 (exc GST)
25+ $20.80 (exc GST)

Looking for an easy-to-use GPS module for your XIAO projects? The L76K GNSS Module is your answer. The L76K GNSS Module, specifically designed for SeeedStudio XIAO, is a versatile and efficient Multi-GNSS receiver. Compatible with all XIAO development boards, it offers comprehensive support for various satellite systems including GPS, BeiDou, GLONASS, and QZSS. This module is capable of both combined multi-system and independent single-system positioning, ensuring flexibility and precision in various applications.

Enhanced with AGNSS functionality, the module boasts a built-in low-noise amplifier and surface acoustic wave filter, delivering fast and precise positioning performance. It comes equipped with a high-performance active GNSS antenna, optimized for GPS L1 C/A, BeiDou B1, and GLONASS L1 frequencies, ensuring wide coverage and reliable signal reception.

Additionally, the module features a small, bright green LED, providing visual confirmation of the 1PPS (one pulse per second) output when a fix is established, simplifying troubleshooting and enhancing user experience.

Features

Enhanced Reception: Built-in Low Noise Amplifier and Surface Acoustic Wave Filter for improved sensitivity and noise reduction
High Precision:32/72 channels, -162dBm tracking, -160dBm re-acquisition sensitivity
Energy Efficiency: 41mA tracking/acquisition, 360µA standby
Multi-GNSS Systems: Powered byQuectel L76K, supporting GPS, BeiDou, GLONASS and QZSS
Ceramic Antenna: Enhanced signal reception, superior to traditional antennas.

Application

GPS navigation
GPS Tracker
Smart City
Logistics and Freight Management

Specifications

Item	Detail
GNSS bands	GPS L1 C/A: 1575.42MHz GLONASS L1: 1602MHz BeiDou B1: 1561.098MHz
Channels	32 tracking ch/72 acquisition ch
TTFF (Time To First Fix)	Cold Starts: 30s(w/o AGNSS), 5.5s(w/ GNSS) Hot Starts: 5.5s(w/o AGNSS), 2s(w/ AGNSS)
Sensitivity	Auto-acquisition: -148dBm Tracking: -162dBm Re-acquisition: -160dBm
Accuracy	Position: 2.0m CEP Velocity: 0.1m/s Acceleration: 0.1m/s² Timing: 30ns
UART Interface	Baud Rate: 9600~115200bps(9600bps default) Update Rate: 1Hz(default), 5Hz(Max.) Protocol: NMEA 0183, CASIC proprietary protocol
Antenna	Type: Active Antenna Operating Frequency: 1559–1606MHz Coaxial Cable: RF1.13 Length=10cm Cable Connector: U.FL Plug RA
Current consumption(w/ active antenna)	Auto-aquisition: 41mA Tracking: 41mA Standby: 360uA
Dimension	18mm x 21mm

Hardware Overview

Parts List

L76K GNSS Module	x1
Active Antenna with iPex connector	x1
7 Pin Female Header 2.54mm	x2

Resources

L76K GNSS Module for Seeed Studio XIAO

This product is listed in:

Wireless>GPS>Modules
Sensors>GPS and Location
