RF Explorer 6G Combo (Seeed Studio)

SKU: SS109990063 Brand: Seeed Studio

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated...

$659.95 AUD, inc GST

$599.95 AUD, exc GST

Quantity Discounts:

3-6 $575.95 (exc GST)
6+ $557.95 (exc GST)

Out of Stock

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double-balanced mixer which offers high performance, compact size, low consumption and low cost.

It has been designed to be used equally well indoor and outdoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

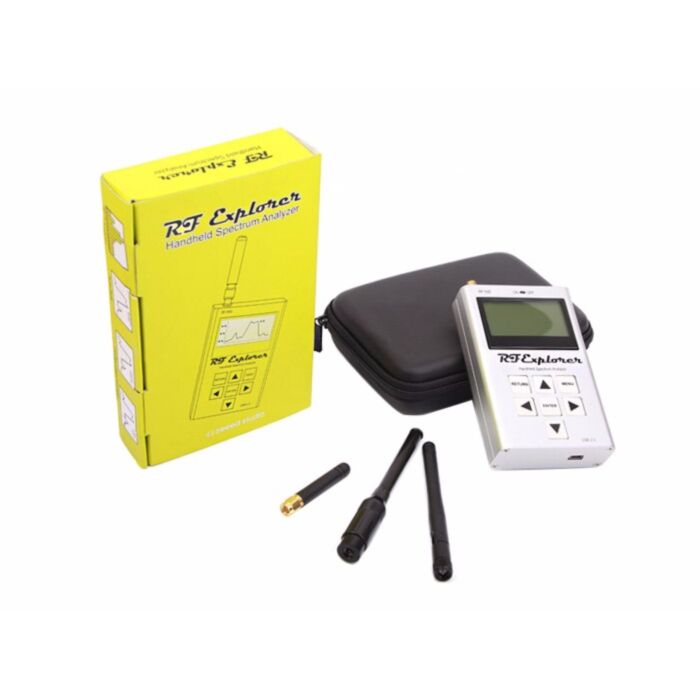

This model includes a 6G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and three antennas: a nice Nagoya NA773 wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported.

The combination of these two models offer coverage for most used communication frequency range used in modern communication technologies including WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.

Features

Pocket size and light weight
Solid aluminum metal case
Includes a transport EVA carry case for RF Explorer
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
Windows PC client Open Source
Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-6.1GHz. This includes very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
Firmware: RF Explorer 6G Combo is delivered with upgraded firmware v1.12. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.

Note this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available. For signal generator and tracking please consider RF Explorer Signal Generator model RFE6GEN.

Specifications

Frequency band: 15-2700 MHz and 4850-6100MHz
Frequency span:

Left SMA port (6G): 2-600Mhz
Right SMA port (WSUB3G): 112KHz - 600MHz

Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight for great indoor visibility
2 standard SMA 50 ohms Spectrum Analyzer connectors:

Left SMA port (6G): 4850-6100MHz
Right SMA port (WSUB3G): 15-2700 MHz

Amplitude resolution: 0.5dBm
Dynamic range:

Left SMA port (6G): -105dBm to -15dBm
Right SMA port (WSUB3G): -110dBm to -10dBm

Absolute Max input power:

Left SMA port (6G): +25dBm
Right SMA port (WSUB3G): +30dBm

Average noise level (typical): -105dBm
Frequency stability and accuracy (typical):

Left SMA port (6G): +-0.5ppm
Right SMA port (WSUB3G): +-10ppm

Amplitude stability and accuracy (typical):

Left SMA port (6G): +-3dBm
Right SMA port (WSUB3G): +-6dBm

Frequency resolution: 1Khz
Resolution bandwidth (RBW):

Left SMA port (6G): automatic 58Khz to 812Khz
Right SMA port (WSUB3G): automatic 3Khz to 600Khz

Size: 113x70x25mm
