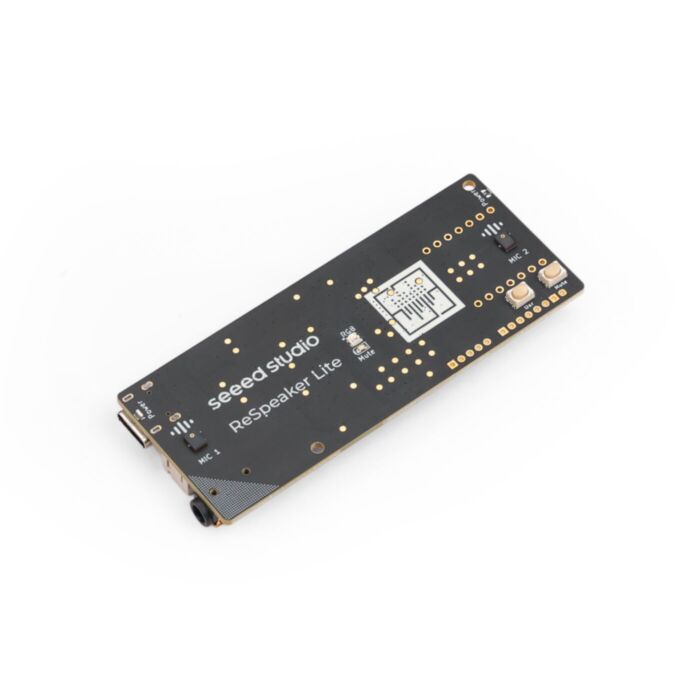

ReSpeaker Lite 2-Mic Array Voice Kit (inc ESP32-S3)

SKU: SS110061601 Brand: Seeed Studio

The kit integrates the ReSpeaker Lite dual-microphone array and a powerful pre-soldered XIAO ESP32S3 processor, offering exceptional voice recognition, noise reduction, and voice processing capabilities thanks to its onboard AI NLU algorithms.

$53.50 AUD, inc GST
$48.64 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 24 and Apr 28

Quantity Discounts:

  • 6+ $46.69 (exc GST)
  • 12+ $45.24 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This kit comes with the XIAO ESP32S3 already soldered on. If you want to buy a complete Voice Assistant Kit, please visit here. The kit offers options for different ReSpeaker Lite models, Speaker, and acrylic enclosures.

  • Pre-Soldered ESP32 Controller: A powerful XIAO ESP32S3 is pre-soldered via the I2S pins, offering a solderless experience for further development and integration.
  • Dual Microphone Array for Far-Field Voice Capture: The 2 high performance digital microphones capture and extract far-field speech and voice (up to 3 meters) even in noisy environments as it cancells point noise using two microphone input.
  • Onboard Audio front-end Algorithms: Powered by XMOS XU-316 AI sound and audio chip, the kit includes Natural Language Understanding algorithms for Interference Cancellation (IC)?, Acoustic Echo Cancellation, Noise Suppression, and Automatic Gain Control (AGC), enabling high quality voice capture.
  • Embracing Open Source: It's compatible with Arduino, PlatformIO, MicroPython, CircuitPython for furthur developement.
  • Compatible with Popular Voice Assistants: This kit allows you to build your own natural language processor and connect it to Home Assitant via ESPHome, Amazon Alexa Voice Service, Google Assistant, or Cloud Speech-to-Text service, enabling you to ask questions and issue voice commands to your programs.
  • Onboard RGB LED: The kit features a programmable WS2812 RGB LED, supporting custom effects and offering a visual interface for your applications.

Specifications

  • General

Core Chip

XMOS XU316

Digital Microphones

High-Performance Digital Microphones * 2

Sensitivity

-26 dBFS

Acoustic Overload Point

120 dBL

SNR

64 dBA

Power Supply

USB 5V, External 5V

Dimensions

35*86 mm

Audio Output

Speaker Connector / 3.5mm Headphone Jack

Maximum Sampling Rate

16Khz

Speaker

Supports 5W Amplifier Speakers.

Processor
