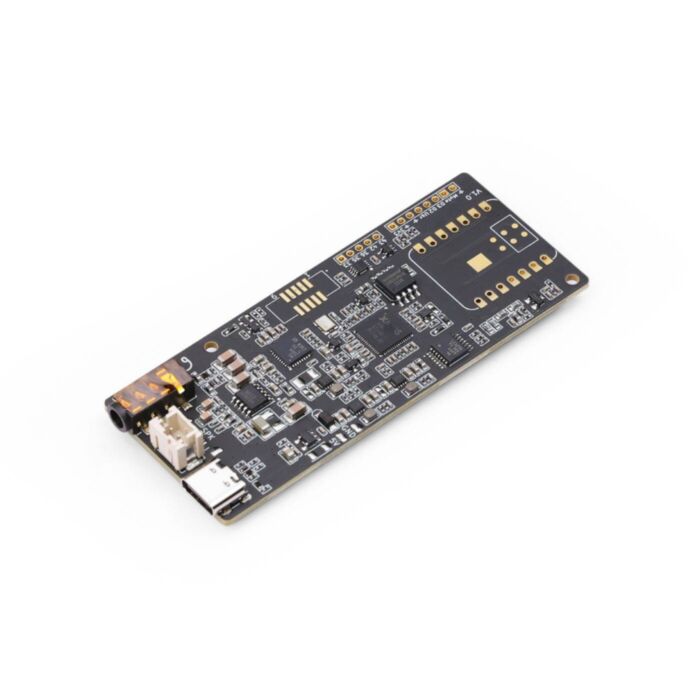

ReSpeaker Lite - USB 2-Mic Array (No ESP32)

SKU: SS107990273 Brand: Seeed Studio

For applications where you might want to use the USB output into a Pi!

$43.75 AUD, inc GST
$39.77 AUD, exc GST

Quantity Discounts:

  • 10+ $38.18 (exc GST)
  • 25+ $36.99 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

ReSpeaker Lite does not come with a MCU for data access and transmission (eg. a XIAO ESP32S3), and it is only for audio processing with XMOS's XU316. If you want to buy a complete Voice Assistant Kit, please visit here. The kit offers options for different ReSpeaker Lite models, Speaker, and acrylic enclosures.

  • Dual Microphone Array for Far-Field Voice Capture: The 2 high performance digital microphones capture and extract far-field speech and voice (up to 3 meters) even in noisy environments as it cancels point noise using two microphone input.
  • Onboard Audio front-end Algorithms:: Powered by XMOS XU-316 AI sound and audio chip, the kit includes Natural Language Understanding algorithms for Interference Cancellation (IC) , Acoustic Echo Cancellation, Noise Suppression, Voice-to-Noise Ratio (VNR), and Automatic Gain Control (AGC), enabling high quality voice capture.
  • Embracing Open Source: This board is compatible with popular hardware platforms (XIAO ESP32S3 (Sense), Adafruit QT Py) via I2S, and compatible with Raspberry Pi, PC via USB (Audio Class 2.0 (UAC2)).
  • Onboard RGB LED: The board features a programmable WS2812 RGB LED, supporting custom effects and offering a visual interface for your applications.
  • External Power Supply Support: this board supports external 5V power supply, which can be flexibly applied in different scenarios.
  • DFU for Custom Development: the board supports custom firmware update via DFU-Util.

Specification

Core Chip

XMOS XU316

Digital Microphones

High-performance digital microphones * 2

Sensitivity

-26 dBFS

Acoustic Overload Point

120 dBL

SNR

64 dBA

Power Supply

USB 5V, external 5V

Dimensions

35*86 mm

Audio Output

Speaker Connector / 3.5mm Headphone jack

Maximum Sampling Rate

16Khz

Speaker

Supports 5W amplifier speakers.

Hardware Overview

1

Dual Microphone Array

Provides high-quality audio input.

2

Power Indicator Light

Illuminates when powered on.

3

RGB Light

Programmable WS2812, provides visual interface

4

Mute Indicator Light

Lights up red when the mute button is pressed.

5

USR Button

User-defined button.

6

Mute Button

Mutes audio input when pressed.

7

XIAO ESP32S3 (optional)

For further development and integration.

8

XU316 Core Processor

Responsible for audio processing and transmission.

9

External Power Supply Solder Pad

Supports external 5V power supply.

10

USB Type-C Port

Used for power and data transmission.

11

Speaker Connector

For audio output. Supports 5W amplifier speakers.

12

3.5mm Headphone jack

Output audio, We can plug active speakers or Headphones into this port.

13

External power pad 1

Unused IO pins on the XIAO ESP32.

14

External power pad 2

Unused IO pins on the XU316.

15

JTAG

For debugging and programming the XU316.

Application

  • Far-Field Voice Control
  • Offline Voice Processing
  • Local Command Processing
  • Custom Wake-Up Words
  • Low Power Voice Offload
  • Industrial Voice Control
  • Voice Recognition and Control for Home Assistant, Google Assistant, Amazon Alexa and more
